NX-B86O5G-3KM

The NODEXON NX-BE300-6KM is a high-performance outdoor long-range wireless bridge designed to provide fast, stable, and reliable wireless connectivity over distances of up to 6 KM. With its extended transmission range and strong penetration capability, it delivers consistent data transmission even in challenging outdoor environments.

Key Features

  • ArrowQuad Gigabit Ports, 867Mbps @5GHz Band
  • ArrowBuilt-in high-frequency board antenna, supports 6KM wireless transmission
  • ArrowFlexible 48V PoE/48V DC power supply; WAN port supports 802.3af/at/bt, LAN ports supports 802.3af/at
  • ArrowBuilt-in TVS protection, nanosecond-level surge and lightning protection on ports
  • ArrowIP65 dust and water resistance, UV-resistant outdoor housing, operates from -30℃ to 55℃
  • ArrowEasy master/slave configuration via toggle switches
  • ArrowPole/wall mountable, remote management via cloud platform and APP

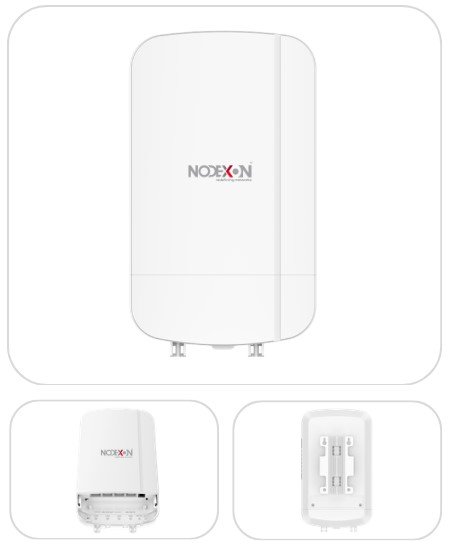

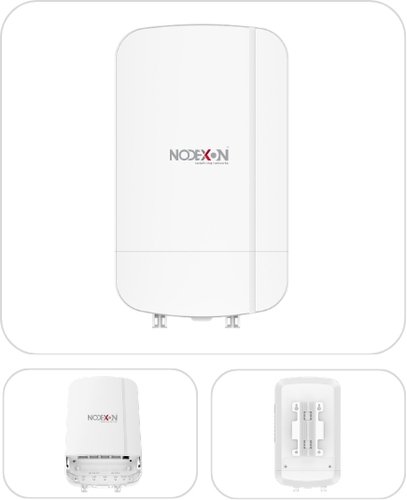

NX-BE300-6KM
5GHz Wireless Performance

5GHz Wireless Performance

  • Arrow802.11 a/n/ac wave2 compliant
  • Arrow867Mbps @ 5GHz band
  • ArrowUp to 3KM transmission distance
  • ArrowWireless power < 25±2dBm
High-Speed Ports

High-Speed Connectivity

  • Arrow1 × 10/100/1000M Self-adaptive WAN Port
  • Arrow1 × 10/100/1000M Self-adaptive LAN Port
  • ArrowSupports 12V non-standard PoE on WAN
  • ArrowFull Gigabit Ethernet ports
Antenna & Signal

Antenna & Signal Strength

  • ArrowExternal 12dBi omnidirectional antenna
  • Arrow2 × RP-SMA-J connectors
  • Arrow5GHz operating frequency: 5.150GHz–5.850GHz
  • ArrowStrong penetration & anti-interference
Power & Protection

Power & Protection

  • ArrowPoE 12V (cables < 30m; > 30m needs 24V+ supply)
  • ArrowDC 12V power input supported
  • ArrowMax power consumption <10W
  • ArrowSurge-protected ports
Cloud Management

Cloud & Mobile Management

  • ArrowCommercial cloud platform management
  • ArrowMobile App management
  • ArrowFat & Skinny mode support
  • ArrowSeamless roaming support
Hardware Design

Hardware Design

  • ArrowUV-resistant outdoor enclosure
  • ArrowIP65 rated protection
  • ArrowWorking temperature: -30°C to 55°C
  • ArrowDimensions: 186 × 86 × 40 mm
  • ArrowWeight: 0.4kg

Hardware Specifications

5GHz Operating Frequency Band
5.150GHz – 5.850GHz
5GHz WIFI Transmission
802.11 a / n /ac wave2
Protocol Wireless Speed
867Mbps
Antenna
Built-in 14dBi directional high-frequency board antenna
5GHz Wireless power
< 24± 2dBm
Interface (WAN)
1×10/100/1000M Self-adaptive WAN Port, Supports 48V (IEEE802.3 bt/af/at) PoE input
Interface (LAN)
3×10/100/1000M Self-adaptive LAN Ports, Supports 48V (IEEE802.3 af/at) PoE output
Power Supply
PoE 48V, DC 48V
Max Power Consumption
<60W
RST Button
hold 10 seconds to restore factory defaults, Press for 1 second to initiate pairing
Slide Switch
One-touch master/slave configuration (H/C)
Status Indicator
SYS LED, WAN Port LED, LAN Port LED, 5G WiFi LED, Signal Strength LEDs ×4 (left orange led: POE, right green: Link)
Product Dimensions
190×110×50mm
Net Weight
0.3875kg
Work Environment
Working: -30°C to 55°C
Storage: -40°C to 70°C
Humidity: 5%-95% (Non-Condensing)
IP-Rated Protection
IP65
ESD
Contact discharge: ±6kV, Air discharge: ±8kV
Surge
Differential mode: 1kV, Common mode: 2kV

Software Specifications

Status Display
Displays work mode, Network topology, Signal strength, CPU/memory usage, Real-time traffic rate, Device description LAN info, Wireless info, Bridge info, WAN info (gateway/WISP).
Work Mode
AP Mode, Bridge Mode, WISP Mode, Gateway Mode
CPE Management (AP/Bridge Mode)
Self-management function for bridges based on the proprietary GHCP protocol
Wireless Features
SSID Broadcast, Hidden SSID, Channel Selection, Encryption Method (NONE, WPA/WPA2PSK-AES), Max Client Limit (0-64), Virtual AP Support (2), Country Code, Client Isolation, DFS, Radio Mode (2×2 MIMO/SISO), MAC Access Control (Blacklist/Whitelist), Scheduled Shutdown, BSSID Lock, Auto-Restart Policy (Watchdog Mechanism)
Security Center
URL Filtering, IP Address Filtering, MAC Address Filtering, Port Mapping, DMZ
Network Features
IPv4/IPv6, Port Settings, Ping, Traceroute, LLDP Settings, Cloud Platform, Static DHCP (32 rules), Remote Login, VPN (IPsec/PPTP/L2TP), Static Routing (16 rules)
Device Management
Configuration Management, Scheduled Reboot, Firmware Upgrade, NTP/Manual/Host Time Sync, System Log, Remote Log, HTTP/Telnet/SSH/SNMP, Traffic Control Settings, Time Group/IP Group Management, DDNS Settings

Datasheet

    Datasheet (PDF)
