NX-B28M6G-35KM

NODEXON NX-B28M6G-35KM is a high-performance, high-speed industrial-grade wireless bridge designed to provide stable and reliable long-range connectivity in demanding outdoor environments. Featuring advanced WiFi 6E technology and a transmission distance of up to 35 KM, it delivers fast, efficient, and consistent data transmission for professional networking applications.

Key Features

  • ArrowAdopting the new generation WiFi 6E standard
  • Arrow6GHz operating frequency band, wireless rate 2402Mbps
  • ArrowExternal 33dBi parabolic antenna, meeting 35KM transmission
  • ArrowDual Gigabit Ethernet ports + SFP optical port combination, supporting optical fiber networking
  • ArrowFully cast aluminum housing, IP67 dust and water proof, -40°C~70°C wide operating temperature
  • ArrowProvides two power supply modes: 48V PoE and 12V DC, making construction more flexible
  • ArrowSupports pole/wall mounting installation, easy to install and maintain

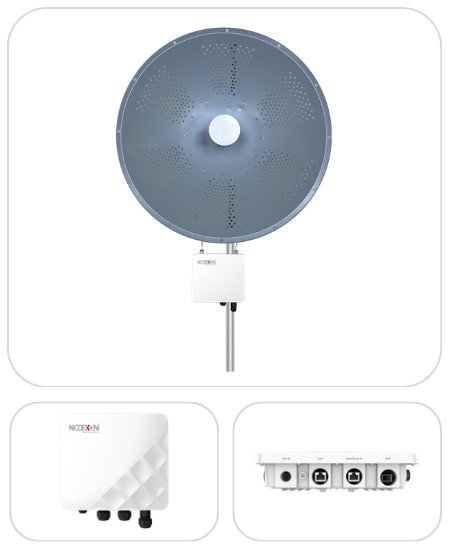

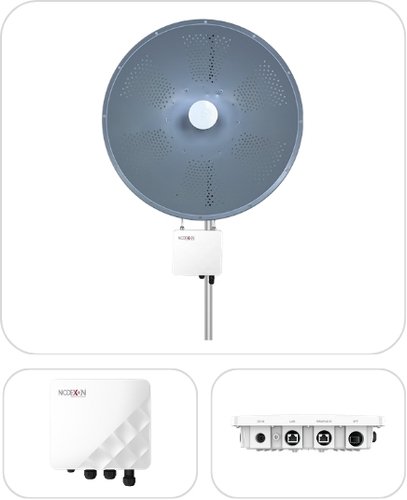

NX-B28M6G-35KM 35KM 6GHz Industrial Grade Wireless Bridge
WiFi 6E Performance

WiFi 6E Performance

  • ArrowWiFi 6E standard
  • Arrow6GHz band, up to 2402Mbps
  • ArrowPTP throughput exceeds 900+ Mbps
  • Arrow802.11 a/n/ac/ax
Long Range

Long-Range Link

  • ArrowTransmission distance up to 35KM
  • ArrowExternal 33dBi parabolic antenna
  • ArrowBuilt-in 32dBi directional panel
  • ArrowStrong anti-interference
Interfaces

Interfaces

  • Arrow1 × Gigabit WAN (PoE 48V)
  • Arrow1 × Gigabit SFP optical port
  • Arrow1 × Gigabit LAN port
  • ArrowReset button
Industrial Design

Industrial Design

  • ArrowFully cast aluminum housing
  • ArrowIP67 dust and water proof
  • ArrowWorking: -40°C to 70°C
  • ArrowPole / wall mounting
Power

Power Supply

  • Arrow48V PoE (802.3at)
  • Arrow12V DC
  • ArrowPower consumption <10W
  • ArrowFlexible installation
Modes

Work Modes

  • ArrowAP Mode
  • ArrowBridge Mode
  • ArrowWISP Mode
  • ArrowGateway Mode

Hardware Specifications

6GHz Frequency Band
5.925GHz~7.125GHz
6GHz WiFi Protocol
802.11 a / n / ac / ax
Antenna
Built-in 32dBi directional panel antenna
Wireless Speed
6GHz band delivers up to 2402Mbps access rate, PTP actual measured throughput exceeds 900+Mbps
Tx Power
<24±2dBm
Interface
1/10/100/1000Mbps Self-adaptive WAN Port, Supports PoE 48V power supply
1 Gigabit SFP Port
1/10/100/1000Mbps Self-adaptive LAN Port
Button
Reset Button (hold 6-10 seconds to restore factory defaults)
Status Indicator
PWR, SFP, WAN, LAN, WiFi indicators
Power Supply
DC 12V 1.5A, PoE 802.3at
Power Consumption
<10W
Product Dimensions
218×243×64mm
Net Weight
1.74kg
Work Environment
Working: -40°C to 70°C
Storage: -40°C to 70°C
Humidity: 5%-95% (Non-Condensing)

Software Specifications

Status Display
Work mode, Network topology, Signal strength, CPU/memory usage, Real-time traffic rate, Device description, LAN info, Wireless info, Bridge info, WAN info (gateway/WISP)
Work Mode
AP Mode, Bridge Mode, WISP Mode, Gateway Mode
CPE Management (AP/Bridge Mode)
Self-management function for bridges based on the proprietary GHCP protocol
Wireless Features
SSID Broadcast, Hidden SSID, Channel Selection, Encryption (NONE, WPA3-SAE, EAP), Max Client Limit (0-64), Virtual AP Support (2), Country Code, Client Isolation, DFS, Radio Mode (2x2 MIMO/SISO), MAC Access Control (Blacklist/Whitelist), Scheduled Shutdown, BSSID Lock, Auto-Restart Policy (Watchdog)
Security Center
URL Filtering, IP Address Filtering, MAC Address Filtering, Port Mapping, DMZ
Network Features
IPv4/IPv6, Port Settings, Ping, Traceroute, LLDP Settings, Cloud Platform, Static DHCP (32 rules), Remote Login, VPN (IPsec/PPTP/L2TP), Static Routing (16 rules)
Device Management
Configuration Management, Scheduled Reboot, Firmware Upgrade, NTP, Manual & Host Time Synchronization, System Log, Remote Log, HTTP, Telnet, SSH, SNMP, Traffic Control Settings, Time Group/IP Group Management, DDNS Settings

Datasheet

    Datasheet (PDF)
