NX-B86M5G-8KM

NODEXON NX-B86M5G-8KM is a high-performance, high-speed outdoor wireless bridge designed to deliver stable and reliable long-range connectivity. With a transmission distance of up to 8 KM, it provides efficient and consistent data transmission for demanding outdoor networking environments.

Key Features

  • ArrowGigabit Dual-Port | 867Mbps @ 5GHz Band
  • ArrowTDMA 3 Dynamic Polling Protocol - Superior Interference Immunity
  • ArrowNarrow Channel Bandwidths: 5MHz/10MHz Supported
  • ArrowBuilt-in 15dBi Directional Antenna (8KM Line-of-Sight Transmission)
  • ArrowUV-Resistant Outdoor Enclosure (3-Year Limited Warranty)
  • ArrowIP65 Rated | -30°C~55°C Operating Temperature
  • ArrowFlexible PoE/DC Power | Surge-Protected Ports
  • ArrowPole/Wall Mounting | Cloud Platform & APP Management

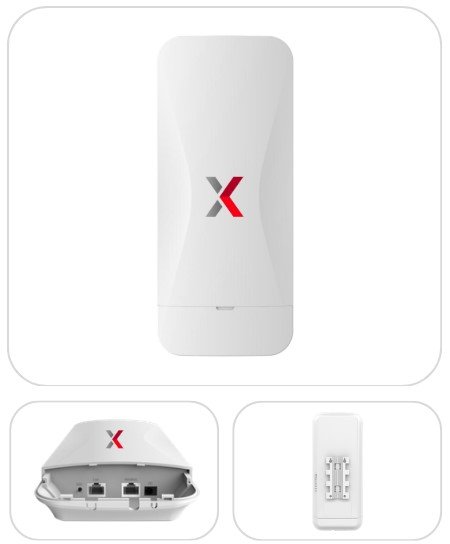

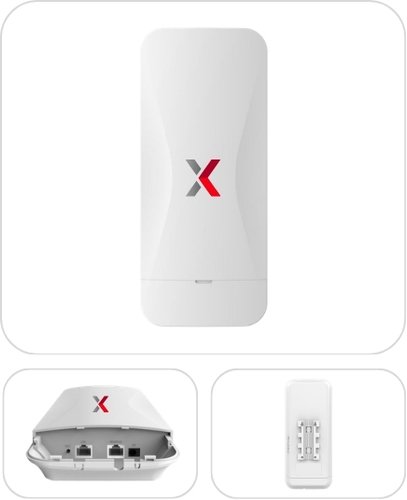

NX-B86M5G-8KM 8KM Commercial-Grade Wireless Bridge
Wireless Performance

Wireless Performance

  • Arrow5GHz up to 867Mbps
  • Arrow802.11 a/n/ac/ax
  • ArrowBuilt-in 15dBi directional antenna
  • ArrowTransmission up to 8KM
Deployment

Deployment

  • ArrowTDMA 3 Dynamic Polling
  • Arrow5MHz / 10MHz narrow channels
  • ArrowPoint-to-point long-range
  • ArrowPole / Wall mounting
Interfaces

Interfaces

  • Arrow1 × Gigabit WAN (PoE)
  • Arrow1 × Gigabit LAN port
  • ArrowReset button
  • ArrowSignal strength LEDs ×5
Outdoor Design

Outdoor Design

  • ArrowIP65 protection
  • ArrowUV-resistant enclosure
  • ArrowWorking: -30°C to 55°C
  • Arrow3-Year Limited Warranty
Power

Power Supply

  • ArrowPoE 24V Passive
  • ArrowDC 12~24V
  • ArrowOptional 48V PoE version
  • ArrowMax power <10W
Management

Management

  • ArrowCloud platform support
  • ArrowAPP management
  • ArrowHTTP / SSH / SNMP
  • ArrowRemote logging

Hardware Specifications

5GHz Operating Frequency Band
5.150GHz~5.850GHz
5GHz WiFi Transmission Protocol
802.11 a / n / ac / ax
Wireless Speed
867Mbps
Antenna
Built-in 15dBi directional panel antenna
5GHz Wireless power
< 26± 2dBm
Interface (WAN)
1/10/100/1000M Self-adaptive WAN Port, Supports 24~48V non-standard PoE power supply
Interface (LAN)
1/10/100/1000M Self-adaptive LAN Port
Button
Reset Button (hold 6-10 seconds to restore factory defaults)
Status Indicator
SYS LED, WAN Port LED, LAN Port LED, Signal Strength LEDs ×5
Power supply
PoE 24V Passive and DC 12~24V
Customizable IEEE 802.3af-compliant 48V PoE version available
Max Power Consumption
<10W
Product Dimensions, Weight
248×83×43.4mm, 0.38 kg
Work Environment
Working: -30°C to 55°C
Storage: -40°C to 70°C
Humidity: 5%~95% (Non-Condensing)
IP-rated protection
IP65

Software Specifications

Dashboard
Device Information, Wireless Information, Network Information, Port Information
Wireless Mode
Access Point (Auto WDS), Access Point (TDMA3), Station (WDS/TDMA3), Station (ARPNAT)
Wireless Technology
Intelligent Dynamic Polling, Auto Channel Selection, Auto Modulation Selection, Automatic Transmit Power Control (ATPC), Backup SSID
Wireless Security
WPA/WPA2 Personal Encryption, WPA/WPA2 Enterprise Encryption, WACL (Wireless Access Control List), Client Isolation
Wireless QoS
TDMA-based 4-level Priority Queuing, Bandwidth Limiting
Network Mode
IPv4 IPv6 Bridge, Router
Network Technology
VLAN Support, VLAN Transparent Transmission, STP (Spanning Tree Protocol)
WAN Protocol
Static IP, DHCP Client
Services
DHCP Server, SNMP Service, NTP Client, Ping Watchdog, System Alerts, mDNS, CDP/LLDP, SSDP, GRE Tunnel, PPPoE Intermediate Agent
Management
HTTP GUI, SSH, SNMPread, WNMS, Telnet, Cloud Platform, Remote Logging
Tools
Site Survey, Connection Test, Antenna Alignment, Traceroute
Device Management
Basic Device Information Settings, System Configuration, User Management, LED Settings

Datasheet

    Datasheet (PDF)
