NX-B24M5G-16KM

The NODEXON NX-B24M5G-16KM is a high-performance, high-speed outdoor WiFi 6 wireless bridge designed to provide stable and reliable long-range wireless connectivity. With a transmission distance of up to 16 KM, it delivers fast and efficient data transmission for demanding outdoor networking applications.
Featuring strong penetration capability and excellent anti-interference performance, the NX-B24M5G-16KM ensures a stable and reliable wireless connection even in challenging outdoor environments.

Key Features

  • ArrowWiFi 6 Compliant: 2402Mbps @ 5GHz Band
  • ArrowBuilt-in 20dBi Array Antenna for 16KM Transmission
  • ArrowInterfaces: 1× Gigabit SFP (Fiber) + 2× Gigabit Ethernet Ports
  • ArrowUV-Resistant Outdoor Enclosure (3-Year Limited Warranty)
  • ArrowIP65 Rated | -30°C to 55°C Operating Temperature
  • ArrowFlexible PoE/DC Power with Surge-Protected Ports
  • ArrowPole/Wall Mounting | Cloud Platform & Mobile App Management

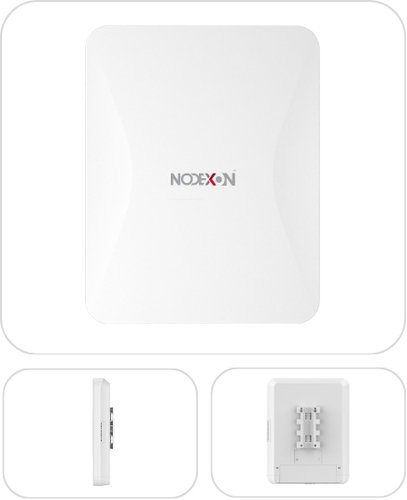

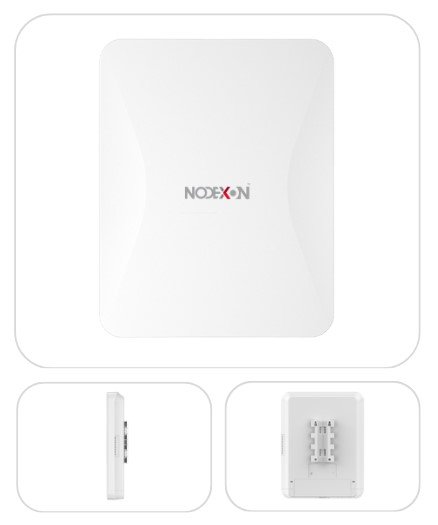

NX-B24M5G-16KM 16KM 5GHz WiFi 6 Wireless Bridge
WiFi 6 Long Range

WiFi 6 Long-Range Performance

  • Arrow802.11 a/n/ac/ax compliant
  • Arrow2402Mbps @ 5GHz band
  • ArrowUp to 16KM transmission distance
  • ArrowPTP actual throughput 900+ Mbps
High-Speed Ports

High-Speed Connectivity

  • Arrow1 × Gigabit SFP Port (ETH1)
  • Arrow1 × 10/100/1000Mbps Ethernet (ETH2) with PoE 48V
  • Arrow1 × 10/100/1000Mbps Ethernet (ETH3)
  • ArrowFull Gigabit Ethernet ports
Antenna & Signal

Antenna & Signal Strength

  • ArrowBuilt-in 20dBi directional panel antenna
  • Arrow5GHz operating frequency: 5.150GHz–5.850GHz
  • ArrowL / M / H signal strength indicators
  • ArrowStrong penetration & anti-interference
Power & Protection

Power & Protection

  • ArrowDC 12V 1.5A power supply
  • ArrowPoE 802.3at support
  • ArrowMax power consumption <10W
  • ArrowSurge-protected ports
Cloud Management

Cloud & Mobile Management

  • ArrowCloud platform management
  • ArrowMobile App management
  • ArrowFat & Skinny mode support
  • ArrowSeamless roaming support
Hardware Design

Hardware Design

  • ArrowUV-resistant outdoor enclosure
  • ArrowIP65 rated protection
  • ArrowWorking temperature: -30°C to 55°C
  • ArrowDimensions: 229 × 179 × 47 mm
  • ArrowWeight: 0.56kg

Hardware Specifications

5GHz Operating Frequency Band
5.150GHz – 5.850GHz
5GHz WiFi Transmission Protocol
802.11 a / n / ac / ax
Antenna
Built-in directional panel antenna 5G 20dBi
Maximum Speed
5GHz band delivers up to 2402Mbps access rate, PTP actual measured throughput exceeds 900+ Mbps
Interface and External
1 × Gigabit SFP Port (ETH1)
1/0/100/1000Mbps Auto-negotiation Ethernet port (ETH2), Supports PoE 48V power supply
1/0/100/1000Mbps Auto-negotiation Ethernet port (ETH3)
Button
Reset Button (hold 6-10 seconds to restore factory defaults)
Power Supply
DC 12V 1.5A, PoE 802.3at, <10W (Maximum Power Consumption)
Status Indicator
PWR: Power indicator (Green: Solid on when powered; Off when unpowered)
SFP: Gigabit SFP port indicator (Green: Off when disconnected; Solid on when connected; Blinking during data transmission)
WAN: Gigabit WAN port indicator (Green: Off when disconnected; Solid on when connected; Blinking during data transmission)
LAN: Gigabit LAN port indicator (Green: Off when disconnected; Solid on when connected; Blinking during data transmission)
WiFi: WiFi indicator (Green: Solid on when WiFi is enabled and connected; Blinking while searching; Off when disabled)
L: Signal strength indicator (Green: Solid on if ≥ set threshold; Off if < threshold)
M: Signal strength indicator (Green: Solid on if ≥ set threshold; Off if > threshold)
H: Signal strength indicator (Green: Solid on if ≥ set threshold; Off if < threshold)
Product Dimensions
229 × 179 × 47 mm
Weight
0.56kg
Work Environment
Working: -30°C to 55°C
Storage: -40°C to 70°C
Humidity: 5%-95% (Non-Condensing)

Datasheet

    Datasheet (PDF)
