NX-B28M6G-16KM

The NODEXON NX-B28M6G-16KM is a high-performance, high-speed industrial-grade wireless bridge designed to provide reliable long-range connectivity in demanding environments. Featuring advanced WiFi 6E technology and a transmission distance of up to 16 KM, it delivers fast, stable, and efficient data transmission for professional outdoor and industrial networking applications.

Key Features

  • ArrowAdopting the new generation WiFi 6E standard
  • Arrow6GHz operating frequency band, wireless rate 2402Mbps
  • ArrowBuilt-in 20dBi directional antenna, meeting 16KM transmission
  • ArrowDual Gigabit Ethernet ports + SFP optical port combination, supporting optical fiber networking
  • ArrowFully cast aluminum housing, IP67 dust and water proof, -40°C~70°C wide operating temperature
  • ArrowProvides two power supply modes: 48V PoE and 12V DC, making construction more flexible
  • ArrowSupports pole/wall mounting installation, easy to install and maintain
  • ArrowSupport commercial cloud platform/App operation and maintenance

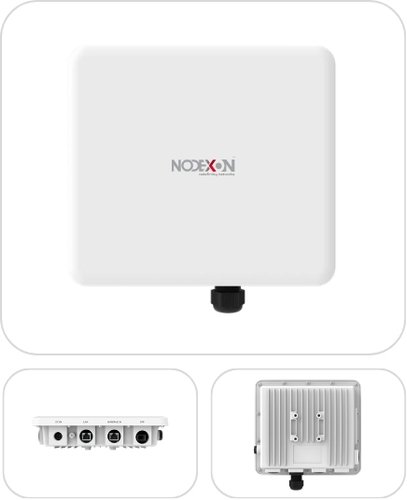

NX-B28M6G-16KM 16KM 6GHz WiFi 6E Industrial Wireless Bridge
Wireless Performance

Wireless Performance

  • ArrowWiFi 6E up to 2402Mbps
  • Arrow802.11 a/n/ac/ax
  • ArrowBuilt-in 20dBi directional antenna
  • ArrowTransmission up to 16KM
Deployment

Deployment

  • ArrowAP / Bridge / WISP / Gateway modes
  • ArrowPoint-to-point long-range
  • ArrowOptical fiber networking via SFP
  • ArrowPole / Wall mounting
Interfaces

Interfaces

  • Arrow1 × Gigabit WAN (48V PoE)
  • Arrow1 × Gigabit SFP port
  • Arrow1 × Gigabit LAN port
  • ArrowReset button
Outdoor Design

Industrial Design

  • ArrowIP67 dust and water proof
  • ArrowFully cast aluminum housing
  • ArrowWorking: -40°C to 70°C
  • ArrowWide temperature range
Power

Power Supply

  • ArrowPoE 802.3at 48V
  • ArrowDC 12V 1.5A
  • ArrowMax power <12W
  • ArrowFlexible dual power modes
Management

Management

  • ArrowCloud platform support
  • ArrowApp management
  • ArrowGHCP CPE management
  • ArrowEasy operation and maintenance

Hardware Specifications

6GHz Frequency Band
5.925GHz~7.125GHz
6GHz WiFi Protocol
802.11 a / n / ac / ax
Antenna
Built-in 20dBi directional panel antenna
Wireless Speed
6GHz band delivers up to 2402Mbps access rate
PTP actual measured throughput exceeds 900+ Mbps
Tx Power
<24±2dBm
Interface
1/10/100/1000Mbps Self-adaptive WAN Port, Supports PoE 48V power supply
1 Gigabit SFP Port
1/10/100/1000Mbps Self-adaptive LAN Port
Button
Reset Button (hold 6-10 seconds to restore factory defaults)
Status Indicator
PWR, SFP, WAN, LAN, WiFi
L / M / H Signal strength indicators
Power Supply
DC 12V 1.5A, PoE 802.3at
Power Consumption
<12W
Product Dimensions
218×243×64mm
Net Weight
1.53kg
Work Environment
Working: -40°C to 70°C
Storage: -40°C to 70°C
Humidity: 5%~95% (Non-Condensing)

Software Specifications

Status Display
Displays work mode, Network topology, Signal strength, CPU/memory usage, Real-time traffic rate, Device description, LAN info, Wireless info, Bridge info, WAN info (gateway/WISP)
Work Mode
AP Mode, Bridge Mode, WISP Mode, Gateway Mode
CPE Management (AP/Bridge Mode)
Self-management function for bridges based on the proprietary GHCP protocol
Wireless Features
SSID Broadcast, Hidden SSID, Channel Selection
Encryption Method (NONE, WPA3-SAE, EAP)
Max Client Limit (0-64), Virtual AP Support (2)
Country Code, Client Isolation, DFS
Radio Mode (2×2 MIMO/SISO)
MAC Access Control Supports Blacklist/Whitelist Mode
Scheduled Shutdown, BSSID Lock
Auto-Restart Policy (Watchdog Mechanism)
Security Center
URL Filtering
IP Address Filtering
MAC Address Filtering
Port Mapping
DMZ
Network Features
IPv4/IPv6, Port Settings, Ping, Traceroute
LLDP Settings, Cloud Platform
Static DHCP: Binds MAC addresses to fixed IPs, supports 32 rules
Remote Login, VPN (IPSec/PPTP/L2TP)
Device Management
Configuration Management
Scheduled Reboot
Firmware Upgrade
NTP - Manual & Host Time Synchronization
System Log, Remote Log
HTTP, Telnet, SSH, SNMP
Traffic Control Settings
Time Group/IP Group Management
DDNS Settings

Datasheet

    Datasheet (PDF)
