NX-B86O5G-3KM

The NODEXON NX-B86O5G-3KM is a high-performance, high-speed outdoor omnidirectional wireless bridge designed to provide stable and reliable wireless connectivity over long distances. With a transmission range of up to 3 KM, it offers strong signal coverage and efficient data transmission for a wide range of outdoor networking applications. Featuring strong penetration capability and excellent anti-interference performance, the NX-B86O5G-3KM maintains a stable connection even in challenging outdoor environments.

Key Features

  • ArrowGigabit Dual-Port: 867Mbps @ 5GHz Band
  • ArrowExternal 12dBi Omnidirectional Antenna (3KM Coverage Radius)
  • ArrowSupports Universal Repeater Mode & Access Point (AP) Mode
  • ArrowUV-Resistant Outdoor Enclosure (3-Year Limited Warranty)
  • ArrowIP65 Rated | -30°C to 55°C Operating Temperature
  • ArrowFlexible PoE/DC Power with Surge-Protected Ports
  • ArrowPole/Wall Mounting | Cloud Platform & Mobile App Management

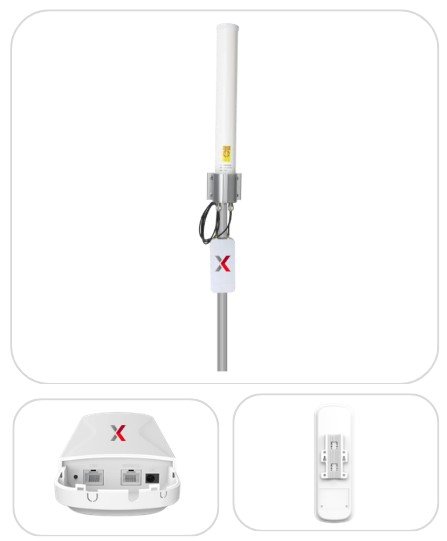

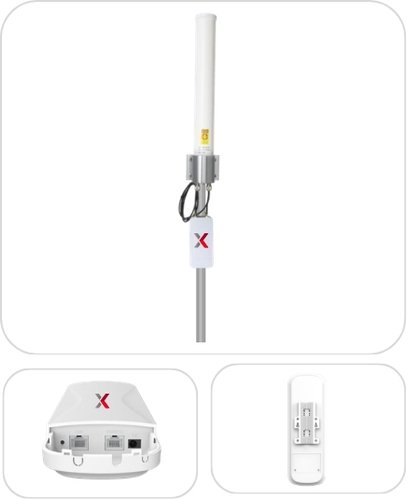

NX-B86O5G-3KM 3KM 5GHz Wireless Bridge
5GHz Wireless Performance

5GHz Wireless Performance

  • Arrow802.11 a/n/ac wave2 compliant
  • Arrow867Mbps @ 5GHz band
  • ArrowUp to 3KM transmission distance
  • ArrowWireless power < 25±2dBm
High-Speed Ports

High-Speed Connectivity

  • Arrow1 × 10/100/1000M Self-adaptive WAN Port
  • Arrow1 × 10/100/1000M Self-adaptive LAN Port
  • ArrowSupports 12V non-standard PoE on WAN
  • ArrowFull Gigabit Ethernet ports
Antenna & Signal

Antenna & Signal Strength

  • ArrowExternal 12dBi omnidirectional antenna
  • Arrow2 × RP-SMA-J connectors
  • Arrow5GHz operating frequency: 5.150GHz–5.850GHz
  • ArrowStrong penetration & anti-interference
Power & Protection

Power & Protection

  • ArrowPoE 12V (cables < 30m; > 30m needs 24V+ supply)
  • ArrowDC 12V power input supported
  • ArrowMax power consumption <10W
  • ArrowSurge-protected ports
Cloud Management

Cloud & Mobile Management

  • ArrowCommercial cloud platform management
  • ArrowMobile App management
  • ArrowFat & Skinny mode support
  • ArrowSeamless roaming support
Hardware Design

Hardware Design

  • ArrowUV-resistant outdoor enclosure
  • ArrowIP65 rated protection
  • ArrowWorking temperature: -30°C to 55°C
  • ArrowDimensions: 186 × 86 × 40 mm
  • ArrowWeight: 0.4kg

Hardware Specifications

5GHz Operating Frequency Band
5.150GHz – 5.850GHz
5GHz WiFi Transmission Protocol
802.11 a / n / ac wave2
Antenna
2 RP-SMA-J connectors (external thread, internal pin), external omnidirectional antenna, gain: 12dBi
Wireless Speed 5GHz
867Mbps
Wireless Power
< 25±2dBm
Interface (WAN)
1/10/100/1000M Self-adaptive WAN Port, Supports 12V non-standard PoE power supply
Interface (LAN)
1/10/100/1000M Self-adaptive LAN Port
Power Supply
PoE 12V (supports network cables < 30 meter; for cables > 30 meter, an optional power supply > 24V is required). DC 12V power input is also supported.
Max Power / Consumption
DC 12V power input supported; <10W maximum power consumption
Button
Hold 10 seconds to restore factory defaults, press for 1 second to initiate pairing
Slide Switch
One-touch master/slave configuration
Status Indicator
SYS LED, WAN Port LED, LAN Port LED, 5G WiFi LED, Signal Strength LEDs × 4
Product Dimensions
186 × 86 × 40 mm
Weight
0.4kg
Work Environment
Working: -30°C to 55°C
Storage: -40°C to 70°C
Humidity: 5%-95% (Non-Condensing)
IP-Rated Protection
IP65

Software Specifications

Status Display
Displays work mode, network topology, signal strength, CPU/memory usage, real-time traffic rate, device description, LAN info, wireless info, bridge info, WAN info (gateway/WISP)
Work Mode
AP Mode, Bridge Mode, WISP Mode, Gateway Mode
CPE Management (AP/Bridge Mode)
Self-management function for bridges based on the proprietary GHCP protocol
Wireless Features
SSID Broadcast, Hidden SSID, Channel Selection, Encryption Method (NONE, WPA/WPA2PSK-AES), Max Client Limit (0-64), Virtual AP Support (2), Country Code, Client Isolation, DFS, Radio Mode (2×2 MIMO/SISO), MAC Access Control (Blacklist/Whitelist), Scheduled Shutdown, BSSID Lock, Auto-Restart Policy (Watchdog Mechanism)
Security Center
URL Filtering, IP Address Filtering, MAC Address Filtering, Port Mapping, DMZ
Network Features
IPv4/IPv6, Port Settings, Ping, Traceroute, LLDP Settings, Cloud Platform, Static DHCP (32 rules), Remote Login, VPN (IPsec/PPTP/L2TP), Static Routing (16 rules)
Device Management
Configuration Management, Scheduled Reboot, Firmware Upgrade, NTP/Manual/Host Time Sync, System Log, Remote Log, HTTP/Telnet/SSH/SNMP, Traffic Control Settings, Time Group/IP Group Management, DDNS Settings
