NX-B86M5G-5M

The NODEXON NX-B86M5G-5M is a cost-effective dedicated wireless bridge designed specifically for elevator applications. It provides a wireless access distance of up to 1.5 KM for reliable connectivity. The device delivers stable and consistent data transmission for elevator systems. Its strong anti-interference capability helps maintain a reliable wireless connection. Designed to perform efficiently in challenging operating environments.

Key Features

  • Arrow5GHz band wireless speed up to 867Mbps
  • ArrowProvide 2×10/100M RJ45 ports
  • ArrowBuilt-in 8dBi directional antenna enabling transmission over 1.5KM
  • ArrowSupports point-to-point (P2P) and point-to-multipoint (P2MP) expansion
  • ArrowFeatures one-push pairing for rapid installation and debugging
  • ArrowVersatile PoE/DC power supply with surge-protected ports
  • ArrowCloud platform and APP management for simplified maintenance

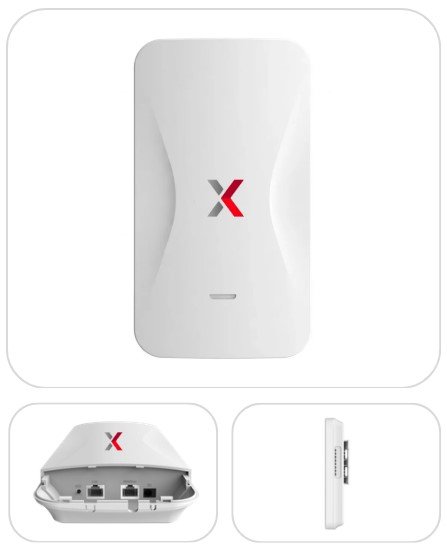

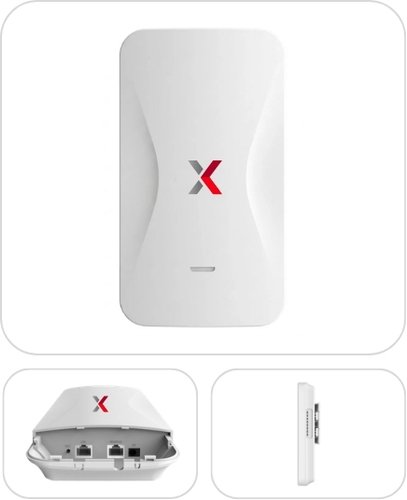

NX-B86M5G-5M 1.5KM Elevator Wireless Bridge
Wireless Performance

Wireless Performance

  • Arrow5GHz up to 867Mbps
  • Arrow802.11 a/n/ac
  • ArrowBuilt-in 8dBi directional antenna
  • ArrowTransmission up to 1.5KM
Deployment

Deployment

  • ArrowPoint-to-point (P2P)
  • ArrowPoint-to-multipoint (P2MP)
  • ArrowOne-push pairing
  • ArrowOne-touch master/slave switch
Interfaces

Interfaces

  • Arrow1 × 10/100M WAN (PoE)
  • Arrow1 × 10/100M LAN port
  • ArrowReset + pairing button
  • ArrowLED status indicators
Outdoor Design

Outdoor Design

  • ArrowIP65 protection
  • ArrowWorking: -30°C to 55°C
  • ArrowStorage: -40°C to 70°C
  • ArrowWeight: 0.5kg
Power

Power Supply

  • ArrowPoE 24V
  • ArrowDC 12V
  • ArrowMax power consumption <5W
  • ArrowSurge-protected ports
Management

Management

  • ArrowCloud platform support
  • ArrowAPP management
  • ArrowGHCP CPE management
  • ArrowElevator dedicated design

Hardware Specifications

Operating Frequency Band
5GHz: 5.150GHz~5.850GHz
WiFi Transmission Protocol
802.11 a / n / ac
Wireless Speed
867Mbps
Antenna
5.8GHz Panel directional antenna gain: 8dBi
Wireless power
< 19±2dBm
Interface (WAN)
1/10/100M Self-adaptive WAN Port, Supports 12V non-standard PoE power supply
Interface (LAN)
1/10/100M Self-adaptive LAN Port
Power supply
PoE 24V, DC 12V
Max Power Consumption
<5W
Reset Button
Hold 10 seconds to restore factory defaults, Press for 1 second to initiate pairing
Slide Switch
One-touch master/slave configuration
Status Indicator
LED indicators: SYS, WAN Port, LAN Port, WIFI, Indicator light ×4
Product Dimensions
168mm×86mm×38mm
Weight
0.5kg
Work Environment
Working: -30°C to 55°C
Storage: -40°C to 70°C
Humidity: 5%~95% (Non-Condensing)
IP-rated protection
IP65

Software Specifications

Dashboard
Wireless AP download, Wireless AP upload rate, System uptime
Device information (description, LAN status, WiFi configuration)
Operation Modes
AP Mode: Provides wireless coverage to client devices while connecting to upstream router via Ethernet for WAN access.
Universal Repeater Mode: Establishes wireless connection to another AP while simultaneously providing wireless coverage to clients.
Wireless Features
SSID Quantity: 4, Supports Chinese SSID and management SSID
Hidden SSID capability
Wireless encryption: OPEN, WPA/WPA2PSK-TKIPAES
Wireless MAC address filtering: Supports whitelist (32 entries)
Relay function
Scheduled WiFi shutdown
User isolation: isolation between wireless networks and internal AP isolation
Transmit power adjustment
Wireless client limit, Supports a maximum of 64 users
IGMP Snooping
Multicast acceleration
CPE Management
Self-management function of the bridge based on the private protocol GHCP
Network Features
IPv4 Address: Supports static IP, DHCP, Obtaining the address from the gateway
VLAN Settings
Ping
Cloud platform integration
Device Management
Configuration backup
Configuration restore
Factory reset
System reboot (immediate or scheduled)
Firmware upgrade
Time management (display and NTP synchronization)

Datasheet

    Datasheet (PDF)
