NX-B86M5G-20KM

NODEXON NX-B86M5G-20KM is a high-performance, high-speed outdoor wireless bridge designed to provide stable and reliable wireless connectivity over long distances. With a transmission range of up to 20 KM, it delivers efficient and consistent data transmission for demanding outdoor networking applications.

Key Features

  • ArrowGigabit Dual-Port with 867Mbps @ 5GHz Band
  • Arrow23dBi Integrated Dish Antenna for 20KM Transmission
  • ArrowTDMA3 Dynamic Polling Protocol - Superior Interference Immunity
  • ArrowUV-Resistant Outdoor Enclosure (3-Year Warranty)
  • ArrowIP65 Rated | -30°C~55°C operating temperature
  • ArrowFlexible PoE/DC Power with Surge-Protected Ports
  • ArrowPole/Wall Mounting | Cloud Platform & App Management

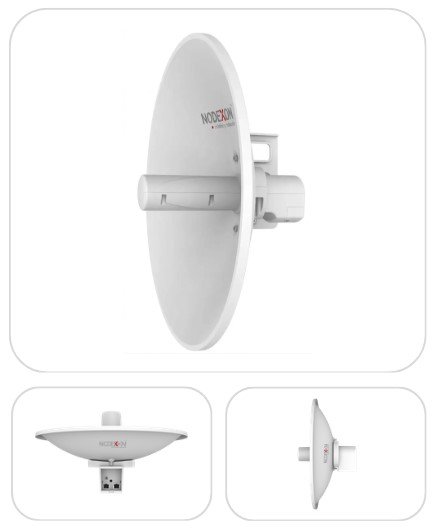

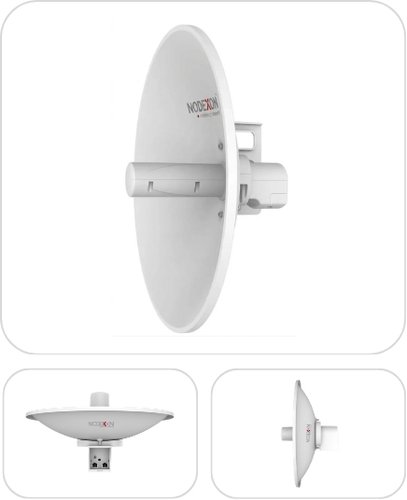

NX-B86M5G-20KM Long-Range 20KM Integrated Wireless Bridge
Wireless Performance

Wireless Performance

  • Arrow5GHz up to 867Mbps
  • Arrow802.11 a / n / ac
  • Arrow23dBi integrated dish antenna
  • ArrowTransmission up to 20KM
Deployment

Deployment

  • ArrowTDMA3 Dynamic Polling
  • ArrowPoint-to-point long-range
  • ArrowBuilding-to-building links
  • ArrowPole / Wall mounting
Interfaces

Interfaces

  • Arrow1 × Gigabit WAN (48V PoE)
  • Arrow1 × Gigabit LAN port
  • ArrowReset button
  • ArrowSYS + WiFi LEDs ×5
Outdoor Design

Outdoor Design

  • ArrowIP65 protection
  • ArrowUV-resistant enclosure
  • ArrowWorking: -30°C to 55°C
  • Arrow3-Year Warranty
Power

Power Supply

  • ArrowIEEE 802.3af 48V PoE
  • ArrowDC 12~24V
  • ArrowMax power <12W
  • ArrowSurge-protected ports
Management

Management

  • ArrowCloud platform support
  • ArrowApp management
  • ArrowLED status indicators
  • ArrowEasy deployment

Hardware Specifications

5GHz Operating Frequency Band
5.150GHz~5.850GHz
5GHz WiFi Transmission Protocol
802.11 a / n / ac
Wireless Speed
867Mbps
Antenna
23dBi integrated dish antenna
5G Wireless power
< 26± 2dBm
Interface (WAN)
1/10/100/1000M Self-adaptive WAN Port, Supports IEEE 802.3af standard 48V PoE
Interface (LAN)
1/10/100/1000M Self-adaptive LAN Port
Button
Reset Button (hold 6-10 seconds to restore factory defaults)
Status Indicator
WAN port with indicator light, LAN port with indicator light
SYS light ×1, wifi indicator light ×5
Power supply
IEEE 802.3af standard 48V PoE, DC 12~24V
Max Power Consumption
< 12W
Product Dimensions, Weight
Ø374×201mm, 2.1kg
Work Environment
Working: -30°C to 55°C
Storage: -40°C to 70°C
Humidity: 5%~95% (Non-Condensing)
IP-rated protection
IP65

Datasheet

    Datasheet (PDF)
