NX-B30M2G-1KM

NODEXON NX-B30M2G-1KM is a high-performance indoor wireless bridge designed to provide stable and reliable wireless connectivity over long distances. Operating on the 2.4GHz frequency band and compliant with IEEE 802.11n, it delivers efficient data transmission with strong signal coverage and dependable performance.

Key Features

  • Arrow2.4GHz band wireless speed up to 300Mbps
  • ArrowProvide 2×10/100M RJ45 ports
  • ArrowDigital display, easy to debug without a computer
  • ArrowBuilt-in 8dBi directional antenna enabling transmission over 1.5KM
  • ArrowSupports point-to-point (P2P) and point-to-multipoint (P2MP) expansion
  • ArrowFeatures one-push pairing for rapid installation and debugging
  • ArrowVersatile PoE/DC power supply with surge-protected ports
  • ArrowCloud platform and APP management for simplified maintenance

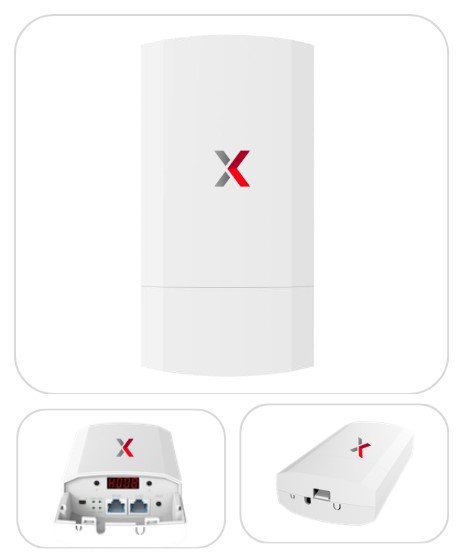

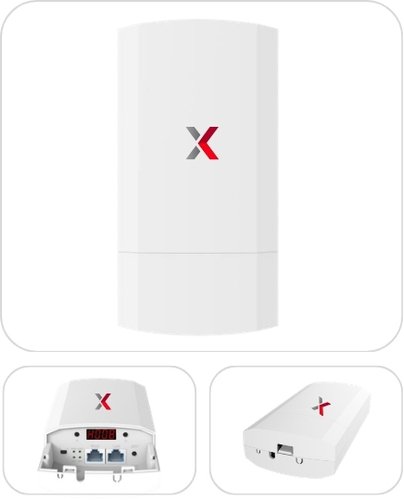

NX-B30M2G-1KM 1.5KM Digital Elevator Wireless Bridge
Wireless Performance

Wireless Performance

  • Arrow2.4GHz up to 300Mbps
  • Arrow802.11b/g/n
  • ArrowBuilt-in 8dBi directional antenna
  • ArrowTransmission up to 1.5KM
Deployment

Deployment

  • ArrowPoint-to-point (P2P)
  • ArrowPoint-to-multipoint (P2MP)
  • ArrowOne-push pairing
  • ArrowMaster / Slave DIP switch
Interfaces

Interfaces

  • Arrow1 × 10/100M WAN (24V PoE)
  • Arrow1 × 10/100M LAN port
  • ArrowDigital tube display
  • ArrowReset + Function / Select buttons
Outdoor Design

Design & Protection

  • ArrowIP65 protection
  • ArrowWorking: -30°C to 55°C
  • ArrowStorage: -40°C to 70°C
  • ArrowWeight: 0.2412kg
Power

Power Supply

  • Arrow24V PoE
  • ArrowMax power consumption <5W
  • ArrowSurge-protected ports
  • ArrowEasy installation
Management

Management

  • ArrowCloud platform support
  • ArrowAPP management
  • ArrowDigital display debugging
  • ArrowDebug without a computer

Hardware Specifications

2.4G Operating Frequency Band
2.4GHz ~ 2.484GHz
2.4G WiFi Transmission Protocol
802.11b/g/n
Peak data rate
300Mbps
Antenna
2 × 2.4G antennas, Each with gain: 8dBi
2.4G Wireless power
<21±2dBm
Button
Reset Button (hold 6-10 seconds to restore factory defaults, 1-second short press for one-touch pairing)
1 × DIP switch (Right: Master / Left: Slave)
2 digital display control buttons (Function "F" and Select "S")
Interface
1/10/100M Self-adaptive WAN Port, Standard 24V PoE
1/10/100M Self-adaptive LAN Port
Status indicator
LED indicators: WAN, LAN, WiFi (×1), PWR, Digital display
Power supply
24V PoE
Max Power Consumption
<5W
Product Dimensions, Weight
168mm×88mm×57.52mm, 0.2412kg
Work Environment
Working: -30°C to 55°C
Storage: -40°C to 70°C
Humidity: 5%~95% (Non-Condensing)
IP-rated protection
IP65

Software Specifications

Dashboard
Wireless AP download, Wireless AP upload rate, System uptime
Device information (description, LAN status, WiFi configuration)
Operation Modes
AP Mode: Provides wireless coverage to client devices while connecting to upstream router via Ethernet for WAN access.
Universal Repeater Mode: Establishes wireless connection to another AP while simultaneously providing wireless coverage to clients.
Wireless Features
SSID Broadcast
SSID Quantity: 4
Hidden SSID capability
Authentication methods: OPEN, WPA/WPA2PSK_TKIPAES
Configurable channel and channel bandwidth
Wireless MAC address filtering
VLAN ID: VLAN-ID (valid range: 3-4094; 0=disabled)
Scheduled WiFi shutdown
Client isolation
Transmit power adjustment
Wireless client limit
WiFi environment analysis
IGMP Snooping
Network Features
IPv4 Address: Supports static IP, or obtains address from management server/gateway
DHCP Server: DHCP server can be internal or external
Cloud platform integration
Device Management
Configuration backup
Configuration restore
Factory reset
System reboot (immediate or scheduled)
Password modification
Firmware upgrade (with optional post-upgrade factory reset)
Time management (display and NTP synchronization)
System logs
Multicast acceleration

Datasheet

    Datasheet (PDF)
