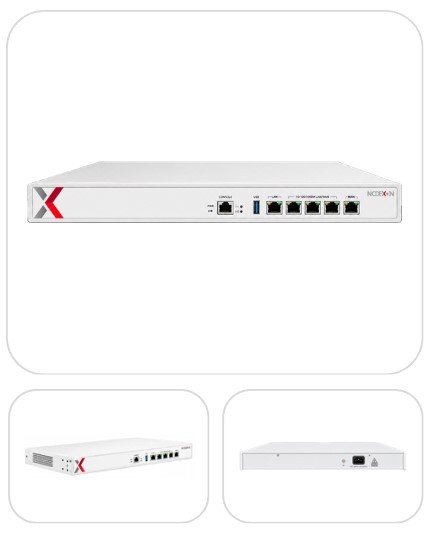

NX-WC400C

The NODEXON NX-WC400C is a commercial Gigabit gateway built to handle multiple network connections with ease. It is designed for businesses that require consistent internet access, efficient bandwidth usage, and smooth data transmission across their network.

Key Features

  • ArrowEnterprise gateway with built-in routing & AC controller (CAPWAP-based)
  • ArrowManages 400APs (400-device capacity)
  • ArrowCloud-ready authentication gateway (supports SMS/user auth)
  • Arrow1 × 2.5Gbps port + 4 × 1GbE ports + 1 × USB port + 1 × Console port
  • ArrowSupports multi-WAN configuration, link aggregation, load balancing, intelligent traffic control, online behavior management, VPN, and remote access control management
NX-WC400C
Performance

Performance

  • Arrow 1024-QAM High-speed Access
  • Arrow 802.11ax OFDMA
  • Arrow BLE Module Integrated
  • Arrow 3 Gigabit Ethernet ports
Network Management

Network Management

  • Arrow Seamless Integration
  • Arrow NODEXON cloud
  • Arrow Free Mobile Application for Mobile Management
Service Quality

Service Quality

  • Arrow EN 62311 Health Standard
  • Arrow Device Recognition Technology
  • Arrow STA Control
  • Arrow Bandwidth Control
Energy Flow

Energy Flow

  • Arrow Operating temperature: -10°C to 50°C
  • Arrow ＜25.4W Power Consumption
  • Arrow DC 48V/1A Local Power Supply
IP

IP

  • Arrow IPv4/IPv6 Address Supported
  • Arrow Multicast to Unicast Routing Conversion
  • Arrow DHCP Snooping
Security Policies

Security Policies

  • Arrow Different Passwords for each user
  • Arrow Individual SSID
  • Arrow Anti-theft Lock Supported
  • Arrow GB4943, EN/IEC 60950-1 Safety Standard

Specifications

Product type
1U standard rack
Serial port
1 Console serial port, RJ45 interface
USB
1 x USB3.0 port
Interface
1 × 2.5GbE RJ45 port
4 x 2.5GbE RJ45 ports(3 ports can be switched to WAN)
Network Indicator light
The RJ-45 interface Tab notch is on the top, with built-in network indicator light
WAN port (left orange, right green): Lights up orange when negotiating 2.5G, lights up green when negotiating 100/1000M
LAN port (single green light on the right): lights up green when there is a data connection, and flashes green when there is network communication
Indicator Lights
1 x hard disk indicator, 1x power indicator
Power
Built-in open-frame power supply
Power Interface
1 x AC power interface, with a pin
Dimension
440mm x 219mm x 44.0mm (L x W x H)
Chassis Fixing Buckle
1U rack fixing ears
Work Environment
Operating temperature: -10°C to 50°C
Storage temperature: -20°C to 70°C
Humidity: 5% to 95% (no condensation)

Datasheet

    Datasheet (PDF)
