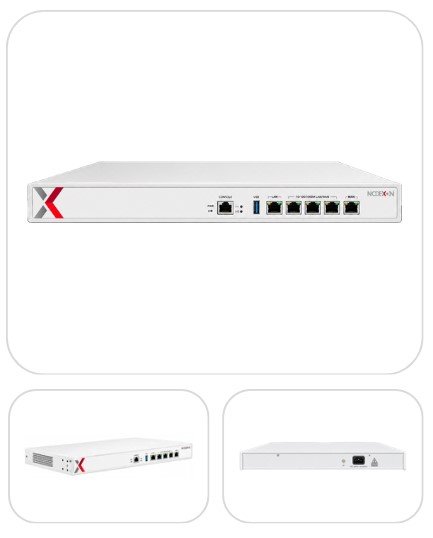

NX-WC200C

The NODEXON NX-WC200C Multi-WAN Port Gigabit Commercial AC Gateway is designed for reliable and efficient network connectivity in business environments. It offers high-speed Gigabit networking, intelligent traffic management, and stable performance for offices, schools, hotels, and other demanding applications..

Key Features

  • ArrowEnterprise gateway with built-in routing & AC controller (CAPWAP-based)
  • ArrowManages 256APs (256-device capacity)
  • ArrowCloud-ready authentication gateway (supports SMS/user auth)
  • Arrow1×1Gbps WAN port + 3×1GbEWAN/LAN ports + 1×1Gbps LAN port ×USB port + 1×Console port
  • ArrowSupports multi-WAN configuration, link aggregation, load balancing, intelligent traffic control, online behavior management, VPN, and remote access control management
NX-WC200C
Performance

Performance

  • Arrow 1024-QAM High-speed Access
  • Arrow 802.11ax OFDMA
  • Arrow BLE Module Integrated
  • Arrow 3 Gigabit Ethernet ports
Network Management

Network Management

  • Arrow Seamless Integration
  • Arrow NODEXON cloud
  • Arrow Free Mobile Application for Mobile Management
Service Quality

Service Quality

  • Arrow EN 62311 Health Standard
  • Arrow Device Recognition Technology
  • Arrow STA Control
  • Arrow Bandwidth Control
Energy Flow

Energy Flow

  • Arrow Operating temperature: -10°C to 50°C
  • Arrow ＜25.4W Power Consumption
  • Arrow DC 48V/1A Local Power Supply
IP

IP

  • Arrow IPv4/IPv6 Address Supported
  • Arrow Multicast to Unicast Routing Conversion
  • Arrow DHCP Snooping
Security Policies

Security Policies

  • Arrow Different Passwords for each user
  • Arrow Individual SSID
  • Arrow Anti-theft Lock Supported
  • Arrow GB4943, EN/IEC 60950-1 Safety Standard

Specifications

Product type
1U standard rack
Serial port
1x Console serial port, RJ45 interface
USB
1 x USB3.0 port
Interface
WAN: 1 × 1GbE RJ45 port
WAN/LAN: 3 x 1GbE RJ45 ports
LAN: 1 x 1GbE RJ45 port
Network Indicator light
The RJ-45 interface Tab notch is on the top, with built-in network indicator light
Link/Act LED on the left: lights up green when connected, flashes green when communicating
Speed LED on the right: green light at 1000M, off at 100M
Button
1xReset button
Power supply type
Built-in open-frame power supply
Power Interface
1 x AC power interface, with a pin
Dimension
440mm x 220mm x 44.0mm (L x W x H)
Chassis Flixing Buckle
1U rack fixing ears
Work Environment
Operating temperature: -10°C to 50°C
Storage temperature: -20°C to 70°C
Humidity: 5% to 95% (no condensation)

Datasheet

    Datasheet (PDF)
