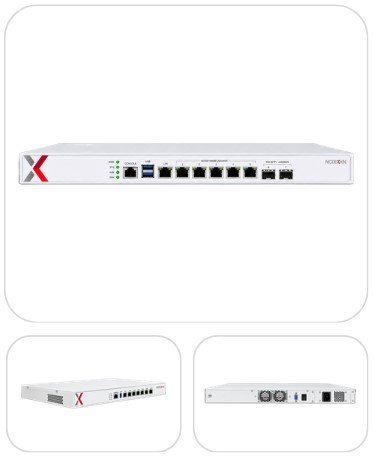

NX-WC1000C

The NODEXON NX-WC1000C is a robust Gigabit commercial gateway built to deliver fast, stable, and dependable network connectivity for modern business environments. It is suitable for offices, educational institutions, hotels, and other applications where consistent network performance is essential.

Key Features

  • ArrowEnterprise gateway with built-in routing & AC controller (CAPWAP-based)
  • ArrowManages 1024 APs (1024-device capacity)
  • ArrowCloud-ready authentication gateway (supports SMS/user auth)
  • Arrow6 × 2.5Gbps ports + 2 × 1GbE SFP fiber ports + 2 × USB ports + 1 × Console port
  • ArrowSupports multi-WAN configuration, link aggregation, load balancing, intelligent traffic control, online behavior management, VPN, and remote access control management
NX-WC1000C
Performance

Performance

  • Arrow 1024-QAM High-speed Access
  • Arrow 802.11ax OFDMA
  • Arrow BLE Module Integrated
  • Arrow 3 Gigabit Ethernet ports
Network Management

Network Management

  • Arrow Seamless Integration
  • Arrow NODEXON cloud
  • Arrow Free Mobile Application for Mobile Management
Service Quality

Service Quality

  • Arrow EN 62311 Health Standard
  • Arrow Device Recognition Technology
  • Arrow STA Control
  • Arrow Bandwidth Control
Energy Flow

Energy Flow

  • Arrow Operating temperature: -10°C to 50°C
  • Arrow ＜25.4W Power Consumption
  • Arrow DC 48V/1A Local Power Supply
IP

IP

  • Arrow IPv4/IPv6 Address Supported
  • Arrow Multicast to Unicast Routing Conversion
  • Arrow DHCP Snooping
Security Policies

Security Policies

  • Arrow Different Passwords for each user
  • Arrow Individual SSID
  • Arrow Anti-theft Lock Supported
  • Arrow GB4943, EN/IEC 60950-1 Safety Standard

Specifications

Product type
1U standard rack
Serial port
1 Console serial port, RJ45 interface
USB
2 x USB3.0 ports
Interface
2 × 1GbE SFP fiber ports
6 x 2.5GbE RJ45 ports
Network Indicator Light
The RJ-45 interface Tab notch is on the top, with built-in network indicator light
Link/Act LED on the left: Lights up yellow when connected, flashes green when communicating
Speed LED on the right: green at 2.5G, orange at 1000M, off at 100M
Indicator Lights
1 x hard disk indicator, 1x power indicator
Display Interface
1 x DB-15 VGA display port
Power
1 x Power button
Power Interface
1 x AC power interface, with a pin
Dimension
294mm x 430mm x 44.5mm (L x W x H)
Chassis Fixing Buckle
1U rack fixing ears
Work Environment
Operating temperature: -10°C to 50°C
Storage temperature: -20°C to 70°C
Humidity: 5% to 95% (no condensation)

Datasheet

    Datasheet (PDF)

Most Viewed

NX-WC100C

NX-WC100C
Enterprise Level Gigabit Routing Gateway

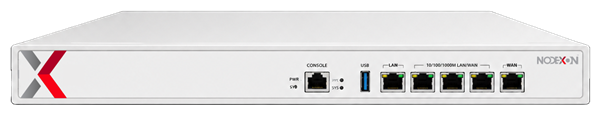

NX-WC200C

NX-WC200C
Enterprise Level Gigabit Routing Gateway
NX-WC1000C

NX-WC1000C
Medium to Large Enterprise Gateway Routing

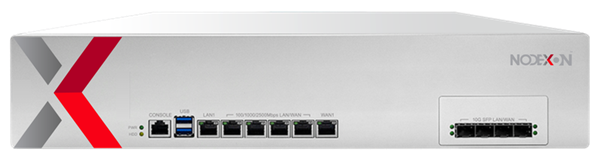

NX-WC5000C
