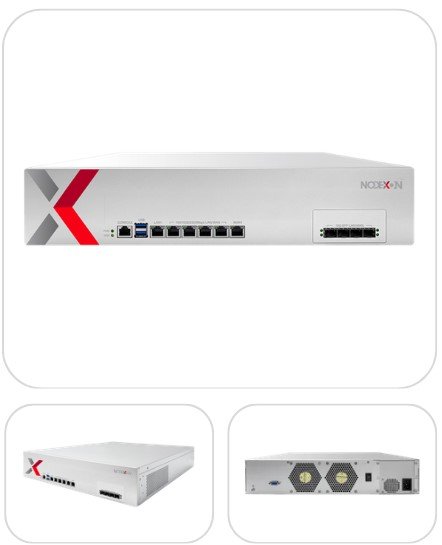

NX-WC3000C

The NODEXON NX-WC3000C is a high-performance Gigabit commercial gateway designed to provide fast, reliable, and stable network connectivity for modern business environments. It is well suited for offices, educational institutions, hotels, and other professional settings where efficient and consistent network performance is required.

Key Features

  • ArrowEnterprise gateway with built-in routing & AC controller (CAPWAP-based)
  • ArrowManages 3072 APs (3072-device capacity)
  • ArrowCloud-ready authentication gateway (supports SMS/user auth)
  • Arrow6 × 2.5Gbps ports + 4 × 10GbE SFP+ fiber ports + 2 × USB ports + 1 × Console port
  • ArrowSupports multi-WAN configuration, link aggregation, load balancing, intelligent traffic control, online behavior management, VPN, and remote access control management
NX-WC3000C
Performance

Performance

  • Arrow 1024-QAM High-speed Access
  • Arrow 802.11ax OFDMA
  • Arrow BLE Module Integrated
  • Arrow 3 Gigabit Ethernet ports
Network Management

Network Management

  • Arrow Seamless Integration
  • Arrow NODEXON cloud
  • Arrow Free Mobile Application for Mobile Management
Service Quality

Service Quality

  • Arrow EN 62311 Health Standard
  • Arrow Device Recognition Technology
  • Arrow STA Control
  • Arrow Bandwidth Control
Energy Flow

Energy Flow

  • Arrow Operating temperature: -10°C to 50°C
  • Arrow ＜25.4W Power Consumption
  • Arrow DC 48V/1A Local Power Supply
IP

IP

  • Arrow IPv4/IPv6 Address Supported
  • Arrow Multicast to Unicast Routing Conversion
  • Arrow DHCP Snooping
Security Policies

Security Policies

  • Arrow Different Passwords for each user
  • Arrow Individual SSID
  • Arrow Anti-theft Lock Supported
  • Arrow GB4943, EN/IEC 60950-1 Safety Standard

Specifications

Product type
2U standard rack
Serial port
1 Console serial port, RJ45 interface
USB
2 x USB3.0 ports
Interface
2 × 1GbE SFP fiber ports
6 x 2.5GbE RJ45 ports
Network Indicator Light
The RJ-45 interface Tab notch is on the top, with built-in network indicator light
Link/Act LED on the left: Lights up yellow when connected, flashes green when communicating
Speed LED on the right: green at 2.5G, orange at 1000M, off at 100M
Indicator Lights
1 x hard disk indicator, 1x power indicator
Display Interface
1 x DB-15 VGA display port
Power
1 x Power button
Power Interface
1 x AC power interface, with a pin
Dimension
430 x 450mm x 88mm (L x W x H)
Chassis Fixing Buckle
2U rack fixing ears
Work Environment
Operating temperature: -10°C to 50°C
Storage temperature: -20°C to 70°C
Humidity: 5% to 95% (no condensation)

Datasheet

    Datasheet (PDF)
