NX-B86M5G-1KM

NODEXON NX-B86M5G-1KM is a high-performance outdoor wireless bridge designed to provide fast, stable, and reliable connectivity over long distances. Operating at 5.8GHz and compliant with IEEE 802.11n, it delivers efficient wireless data transmission with strong signal performance for demanding outdoor applications.

Key Features

  • Arrow5GHz band wireless speed up to 867Mbps
  • ArrowProvide 2×10/100M RJ45 ports
  • ArrowDigital display, easy to debug without a computer
  • ArrowBuilt-in 12dBi directional antenna enabling transmission over 2KM
  • ArrowSupports point-to-point (P2P) and point-to-multipoint (P2MP) expansion
  • ArrowFeatures one-push pairing for rapid installation and debugging
  • ArrowVersatile PoE/DC power supply with surge-protected ports
  • ArrowCloud platform and APP management for simplified maintenance

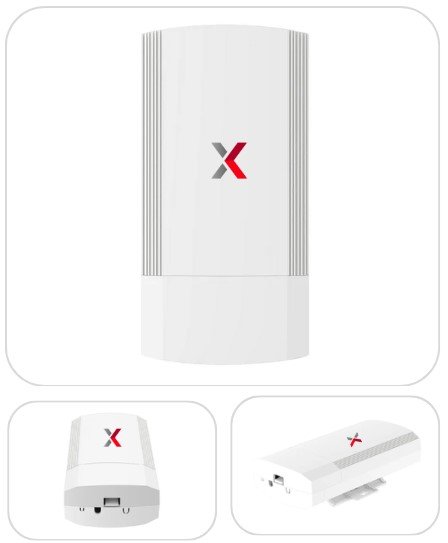

NX-B86M5G-1KM 2KM Digital Elevator Wireless Bridge
Wireless Performance

Wireless Performance

  • Arrow5GHz up to 867Mbps
  • Arrow802.11 a/n/ac
  • ArrowBuilt-in 12dBi directional antenna
  • ArrowTransmission up to 2KM
Deployment

Deployment

  • ArrowPoint-to-point (P2P)
  • ArrowPoint-to-multipoint (P2MP)
  • ArrowOne-push pairing
  • ArrowMaster / Slave DIP switch
Interfaces

Interfaces

  • Arrow1 × 10/100M WAN (24V PoE)
  • Arrow1 × 10/100M LAN port
  • ArrowDigital tube display
  • ArrowReset + Function / Select buttons
Outdoor Design

Outdoor Design

  • ArrowIP65 protection
  • ArrowWorking: -30°C to 55°C
  • ArrowStorage: -40°C to 70°C
  • ArrowWeight: 0.24kg
Power

Power Supply

  • Arrow12~24V PoE
  • ArrowPower consumption <5W
  • ArrowSurge-protected ports
  • ArrowFlexible installation
Management

Management

  • ArrowCloud platform support
  • ArrowAPP management
  • ArrowDigital display debugging
  • ArrowDebug without a computer

Hardware Specifications

Frequency Band
5.150GHz~5.850GHz
WiFi Protocol
802.11 a / n / ac
Wireless Speed
867Mbps
Antenna
Built-in directional flat-panel antenna, gain: 12dBi
Tx Power
< 19± 2dBm
Interface (WAN)
1/10/100Mbps WAN Port, 24V PoE
Interface (LAN)
1/10/100Mbps LAN Port
Button
Reset Button (hold 6-10 seconds to restore factory defaults)
1 × DIP switch (Right: Master / Left: Slave)
2 digital display control buttons (Function "F" and Select "S")
Display Screen
Digital tube display (shows Master/Slave status, channel, signal strength bars, etc.)
Status Indicator
PWR, WAN, LAN, WiFi
Power Supply Power
12~24V PoE
Consumption
<5W
Dimensions
168mm×88mm×57.6mm
Net Weight
0.24kg
Work Environment
Working: -30°C to 55°C
Storage: -40°C to 70°C
Humidity: 5%~95% (Non-Condensing)
IP-rated protection
IP65

Software Specifications

Dashboard
Wireless AP download, Wireless AP upload rate, System uptime
Device information (description, LAN status, WiFi configuration)
Operation Modes
AP Mode: Provides wireless coverage to client devices while connecting to upstream router via Ethernet for WAN access.
Universal Repeater Mode: Establishes wireless connection to another AP while simultaneously providing wireless coverage to clients.
Wireless Features
SSID Broadcast
SSID Quantity: 4
Hidden SSID capability
Authentication methods: OPEN, WPA/WPA2PSK_TKIPAES
Configurable channel and channel bandwidth
Wireless MAC address filtering
VLAN ID: VLAN-ID (valid range: 3-4094; 0=disabled)
Scheduled WiFi shutdown
Client isolation
Transmit power adjustment
Wireless client limit
WiFi environment analysis
Multicast acceleration
Network Features
IPv4 Address: Supports static IP, or obtains address from management server/gateway
DHCP Server: DHCP server can be internal or external
Cloud platform integration
Device Management
Configuration backup
Configuration restore
Factory reset
System reboot (immediate or scheduled)
Password modification
Firmware upgrade (with optional post-upgrade factory reset)
Time management (display and NTP synchronization)
System logs
Multicast acceleration

Datasheet

    Datasheet (PDF)
