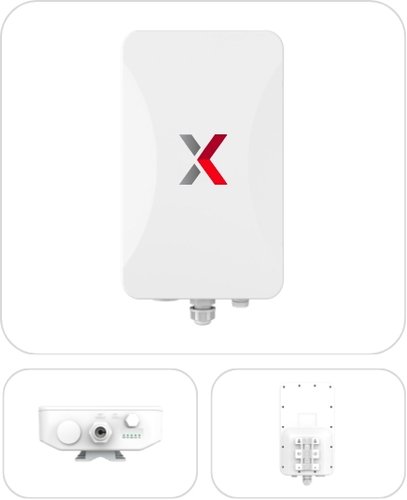

NX-AP7000-O7

The NODEXON NX-AP7000-O7 is a high-performance Wi-Fi 7 (802.11be) dual-band outdoor access point designed to deliver fast, stable, and reliable wireless connectivity in demanding outdoor environments. It features a 2×2 configuration on both the 2.4GHz and 5GHz bands, providing efficient wireless performance and broad connectivity.

Key Features

  • ArrowWiFi 7 standard, 2.4GHz(688Mbps), 5GHz(2882Mbps) dual-band wireless rate
  • ArrowBuilt-in 4 omnidirectional antennas, coverage radius >300 meters
  • Arrow2×2 (2.4GHz) + 4×4 (5GHz), a total of 6 streams
  • ArrowCommercial-grade Qualcomm solution, with a maximum of 128 users connected
  • ArrowProvides 1×2.5G RJ45 port + 1×Gigabit RJ45 port
  • ArrowSupport PoE/DC flexible power supply, support pole/wall mounting
NX-AP7000-O7
Performance

Performance

  • Arrow 1024-QAM High-speed Access
  • Arrow 802.11ax OFDMA
  • Arrow BLE Module Integrated
  • Arrow 3 Gigabit Ethernet ports
Network Management

Network Management

  • Arrow Seamless Integration
  • Arrow NODEXON cloud
  • Arrow Free Mobile Application for Mobile Management
Service Quality

Service Quality

  • Arrow EN 62311 Health Standard
  • Arrow Device Recognition Technology
  • Arrow STA Control
  • Arrow Bandwidth Control
Energy Flow

Energy Flow

  • Arrow Operating temperature: -10°C to 50°C
  • Arrow ＜25.4W Power Consumption
  • Arrow DC 48V/1A Local Power Supply
IP

IP

  • Arrow IPv4/IPv6 Address Supported
  • Arrow Multicast to Unicast Routing Conversion
  • Arrow DHCP Snooping
Security Policies

Security Policies

  • Arrow Different Passwords for each user
  • Arrow Individual SSID
  • Arrow Anti-theft Lock Supported
  • Arrow GB4943, EN/IEC 60950-1 Safety Standard

Specifications

2.4GHz Frequency Band
2.4GHz ~ 2.484GHz
2.4GHz WIFI Protocol
802.11 b/g/n/ax/be
5GHz Frequency Band
5.150GHz ~ 5.850GHz
5GHz WIFI Protocol
802.11 a/n/ac/ax/be
Built-in antenna 2.4GHz
2 × 2.4GHz antennas, each gain: 4dBi
Built-in antenna 5GHz
2 × 5GHz antennas, each gain: 4dBi
Wireless Speed
2.4GHz provides a maximum access rate of 688Mbps, and 5GHz provides a maximum access rate of 2882Mbps, with a total rate of nearly 3.6Gpbs.
Device Capacity
128
2.4GHz Tx Power
<24±2dBm
5GHz Tx Power
<23±2dBm
Interface (WAN)
1 × 10/100/1000/2500Mbps WAN port, support 802.3at input
Interface (LAN)
1 × 10/100/1000Mbps LAN port
Buttons
Reset button (Press and hold for 6-10 seconds to restore to factory default settings)
Status Indicator
PWR light, SYS light, WAN port light, 2.4GHz light, 5GHz light
Power Supply
PoE 802.3at
Power Consumption
<20W
Dimensions
304mm × 181mm × 88mm
Net Weight
1.6kg
Work Environment
Operating temperature: -10°C to 55°C
Storage temperature: -40°C to 70°C
Humidity: 5% to 95% (no condensation)
Protection Level
IP67

Datasheet

    Datasheet (PDF)
