NX-AP5400-O6

The NODEXON NX-AP5400-O6 is a high-performance dual-band Wi-Fi 6 (802.11ax) wireless access point designed to provide fast, stable, and reliable wireless connectivity. It supports wireless services across both 2.4GHz and 5GHz frequency bands, making it suitable for a wide range of networking environments.

Key Features

  • ArrowWiFi 6 standard, providing 2.4GHz (574Mbps), 5GHz (2402Mbps) dual-band wireless rate
  • ArrowBuilt-in directional antenna, 2×2 (2.4GHz) + 2×2 (5GHz) 4 streams, coverage distance >800 meters
  • ArrowCommercial-grade Qualcomm solution, with a maximum of 128 users connected
  • ArrowProvides 1×Gigabit optical port + 2×Gigabit RJ45 ports
  • ArrowMetal aluminum shell, IP67 protection, -40°C~70°C wide operating temperature
  • ArrowSupport PoE/DC flexible power supply, support pole/wall mounting

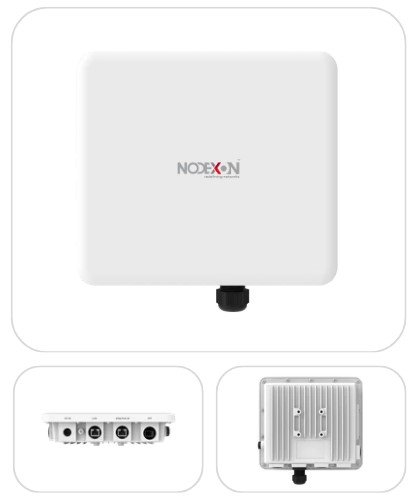

NX-AP5400-O6 Dual-Band WiFi 6 Outdoor Wireless AP
WiFi 6 Performance

WiFi 6 Performance

  • Arrow2.4GHz up to 574Mbps
  • Arrow5GHz up to 2402Mbps
  • Arrow2×2 (2.4GHz) + 2×2 (5GHz) 4 streams
  • ArrowMaximum 128 concurrent users
Antenna & Coverage

Directional Antenna & Coverage

  • ArrowBuilt-in directional antenna
  • Arrow2.4GHz gain: 10dBi
  • Arrow5GHz gain: 12dBi
  • ArrowCoverage distance >800 meters
Interfaces

Interfaces

  • Arrow1 × Gigabit SFP optical port
  • Arrow1 × Gigabit WAN port (PoE 48V)
  • Arrow1 × Gigabit LAN port
  • ArrowReset button
Rugged Design

Outdoor Rugged Design

  • ArrowMetal aluminum shell
  • ArrowIP67 protection
  • ArrowOperating: -30°C to 55°C
  • ArrowStorage: -40°C to 70°C
Power

Power & Mounting

  • ArrowPoE 802.3at
  • ArrowDC 12V/2A
  • ArrowPower consumption <18W
  • ArrowPole / wall mounting
Software

Software Capabilities

  • ArrowFat AP & Thin AP modes
  • ArrowGateway mode & AP mode
  • ArrowWPA3 / WPA2 encryption
  • ArrowCloud platform support

Hardware Specifications

2.4GHz Frequency Band
2.4GHz~2.484GHz (802.11b/g/n/ax)
5GHz Frequency Band
5.150GHz~5.850GHz (802.11a/n/ac/ax)
Antennas
2.4GHz/5GHz directional antenna
2.4GHz gain: 10dBi; 5GHz gain: 12dBi
Wireless Speed
2.4GHz: up to 574Mbps
5GHz: up to 2402Mbps
Device Capacity
128
2.4GHz Tx Power
<25±2dBm
5GHz Tx Power
<25±2dBm
Interface
1 × 10/100/1000Mbps SFP optical port
1 × 10/100/1000Mbps adaptive WAN port (support PoE 48V input)
1 × 10/100/1000Mbps adaptive LAN port
Buttons
Reset button (press and hold 6–10 seconds to restore factory defaults)
Power Supply
PoE 802.3at, DC 12V/2A
Power Consumption
<18W
Status Indicator
Silk-screen PWR: Power indicator light (green, always on when powered on; off when not powered on)
Silk-screen SFP: Gigabit optical port indicator (green, off when not connected, always on when connected, flashing when data is sent or received)
Silkscreen WAN: Gigabit WAN port indicator (green, off when not connected, always on when connected, flashing when sending or receiving data)
Silkscreen LAN: Gigabit LAN port indicator (green, off when not connected, always on when connected, flashing when sending or receiving data)
Silkscreen 5G: 5GHz status (green, 5GHz WiFi is on, always on, data is sent and received, flashing, WiFi is off, off)
Silkscreen 2.4G: 2.4GHz status (green, 2.4GHz WiFi is on, always on, data is sent and received, flashing, WiFi is off, off)
Dimensions
243.2mm × 218.3mm × 64.1mm
Net Weight
1.825kg
Work Environment
Operating temperature: -30°C to 55°C
Storage temperature: -40°C to 70°C
Humidity: 5% to 95% (no condensation)
Protection Level
IP67

Datasheet

    Datasheet (PDF)
