NX-AP3000G-O6

The NODEXON NX-AP3000G-O6 is an entry-level dual-band Wi-Fi 6 (802.11ax) outdoor wireless access point designed to provide stable, reliable, and efficient wireless connectivity. It supports wireless services across both 2.4GHz and 5GHz frequency bands, making it suitable for various outdoor networking environments.

Key Features

  • ArrowWiFi 6 standard, providing 2.4GHz (574Mbps), 5GHz (2402Mbps) dual-band wireless rate
  • Arrow2× omnidirectional waterproof antennas, 2×2 (2.4GHz) + 2×2 (5GHz) for a total of 4 streams
  • ArrowMaximum number of user accesses: 128, coverage radius >200 meters
  • ArrowProvides 2×Gigabit RJ45 ports
  • ArrowOutdoor UV-resistant housing, IP65 protection, -30°C~55°C wide operating temperature
  • ArrowSupport PoE/DC flexible power supply, support pole/wall mounting

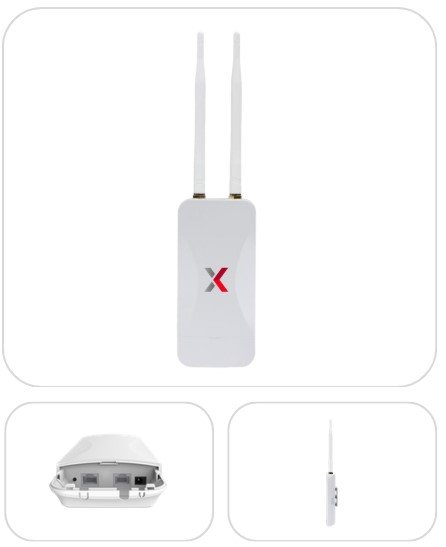

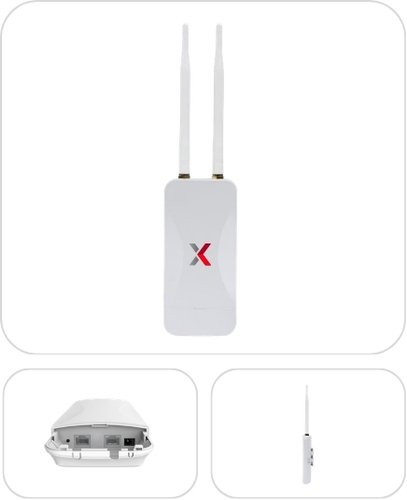

NX-AP3000G-O6 Dual-Band WiFi 6 Outdoor Wireless AP
WiFi 6 Performance

WiFi 6 Performance

  • Arrow2.4GHz up to 574Mbps
  • Arrow5GHz up to 2402Mbps
  • Arrow2×2 (2.4GHz) + 2×2 (5GHz) 4 streams
  • ArrowMaximum 128 concurrent users
Antenna & Coverage

Omnidirectional Antennas

  • Arrow2 × omnidirectional waterproof antennas
  • ArrowDual-band 2.4GHz/5GHz
  • ArrowEach antenna gain: 5dBi
  • ArrowCoverage radius >200 meters
Interfaces

Interfaces

  • Arrow1 × Gigabit WAN port (48V PoE)
  • Arrow1 × Gigabit LAN port
  • ArrowReset button
  • ArrowStatus indicators (PWR, WAN, LAN, 2.4G, 5G)
Rugged Design

Outdoor Design

  • ArrowOutdoor UV-resistant housing
  • ArrowIP65 protection
  • ArrowOperating: -30°C to 55°C
  • ArrowStorage: -40°C to 70°C
Power

Power & Mounting

  • ArrowPoE 802.3af
  • ArrowDC 12V/1.5A
  • ArrowPower consumption <10W
  • ArrowPole / wall mounting
Software

Software Capabilities

  • ArrowFat AP & Thin AP modes
  • ArrowGateway mode & AP mode
  • ArrowWPA3 / WPA2 encryption
  • ArrowCloud platform support

Hardware Specifications

2.4GHz Frequency Band
2.4GHz ~ 2.484GHz (802.11 b/g/n/ax)
5GHz Frequency Band
5.150GHz~5.850GHz (802.11 a/n/ac/ax)
Antenna
Two external 2.4GHz/5GHz dual-band waterproof antennas, each with a gain of 5dBi
Wireless Speed
2.4GHz: up to 574Mbps
5GHz: up to 2402Mbps
Device Capacity
128
2.4GHz Tx Power
<23±2dBm
5GHz Tx Power
<22.5±2dBm
Interface
1 × 10/100/1000Mbps WAN port (supports 48V PoE)
1 × 10/100/1000Mbps LAN port
Buttons
Reset button (press and hold 6–10 seconds to restore factory defaults)
Status Indicator
PWR light, WAN port light, LAN port light, 2.4GHz light, 5GHz light
Power Supply
DC 12V/1.5A, PoE 802.3af
Power Consumption
<10W
Dimensions
196mm × 86mm × 40mm
Net Weight
0.4kg
Work Environment
Operating temperature: -30°C to 55°C
Storage temperature: -40°C to 70°C
Humidity: 5% to 95% (no condensation)
Protection Level
IP65

Datasheet

    Datasheet (PDF)
