NX-AP3000A-O6

The NODEXON NX-AP3000A-O6 is a high-performance dual-band Wi-Fi 6 (802.11ax) wireless access point designed to deliver fast, stable, and reliable wireless connectivity. It supports wireless services across both 2.4GHz and 5GHz frequency bands, providing efficient network performance for a variety of environments.

Key Features

  • ArrowWiFi 6 standard, providing 2.4GHz/5GHz dual-band 3000Mbps wireless rate
  • Arrow4 fiberglass omnidirectional antennas, coverage distance >150 meters
  • Arrow2×2 (2.4GHz) + 2×2 (5GHz), a total of 4 streams
  • ArrowCommercial-grade Qualcomm solution, with a maximum of 128 users connected
  • ArrowProvides 1×2.5G network port
  • ArrowMetal aluminum shell, IP67 protection, -40°C~70°C wide operating temperature
  • ArrowSupport PoE power supply, support pole/wall mounting

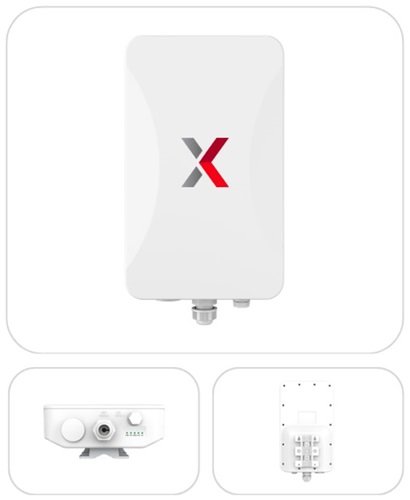

NX-AP3000A-O6 Dual-Band WiFi 6 Outdoor Wireless AP
WiFi 6 Performance

WiFi 6 Performance

  • Arrow2.4GHz up to 574Mbps
  • Arrow5GHz up to 2402Mbps
  • Arrow2×2 (2.4GHz) + 2×2 (5GHz) 4 streams
  • ArrowDual-band 3000Mbps wireless rate
Antenna & Coverage

Omnidirectional Antennas

  • Arrow4 fiberglass omnidirectional antennas
  • Arrow2 × 2.4GHz antenna, 3dBi each
  • Arrow2 × 5GHz antenna, 6dBi each
  • ArrowCoverage distance >150 meters
Interfaces

Interface & Capacity

  • Arrow1 × 2.5G WAN port (48V PoE)
  • ArrowDevice capacity: 256
  • ArrowCommercial-grade Qualcomm
  • ArrowReset button
Rugged Design

Outdoor Rugged Design

  • ArrowMetal aluminum shell
  • ArrowIP67 protection
  • ArrowOperating: -30°C to 55°C
  • ArrowStorage: -40°C to 70°C
Power

Power & Mounting

  • ArrowPoE 802.3at
  • ArrowPower consumption <16W
  • ArrowPole / wall mounting
  • ArrowNet weight: 2.2kg
Software

Software Capabilities

  • ArrowFat AP & Thin AP modes
  • ArrowGateway mode & AP mode
  • ArrowWPA3 / WPA2 encryption
  • ArrowCloud platform support

Hardware Specifications

2.4GHz Frequency Band
2.4GHz ~ 2.484GHz (802.11 b/g/n/ax)
5GHz Frequency Band
5.150GHz~5.850GHz (802.11 a/n/ac/ax)
External Antenna 2.4GHz
2 × 2.4GHz antenna, each gain: 3dBi
External Antenna 5GHz
2 × 5GHz antenna, each gain: 6dBi
Wireless Speed
2.4GHz provides a maximum access rate of 574Mbps, 5GHz provides a maximum access rate of 2402Mbps
Device Capacity
256
2.4GHz Tx Power
<26±2dBm
5GHz Tx Power
<25±2dBm
Interface
1 × 10/100/1000/2500Mbps WAN port, support 48V PoE
Button
Reset button (press and hold 6–10 seconds to restore factory defaults)
Power Supply
PoE 802.3at
Power Consumption
<16W
Dimensions
295mm × 231mm × 80mm
Net Weight
2.2kg
Work Environment
Operating temperature: -30°C to 55°C
Storage temperature: -40°C to 70°C
Humidity: 5% to 95% (no condensation)
Protection Level
IP67

Datasheet

    Datasheet (PDF)
