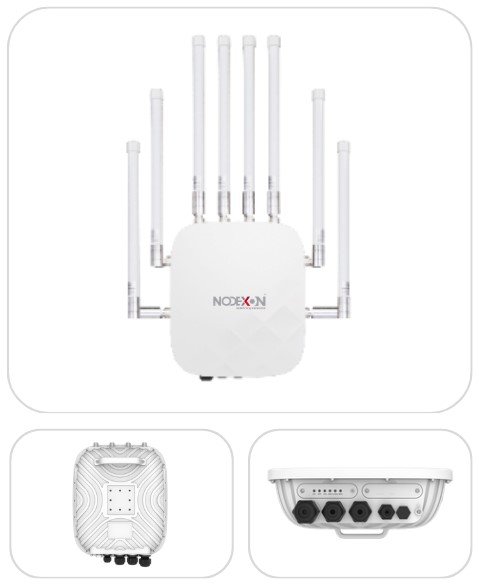

NX-AP13G-O7

NODEXON NX-AP13G-O7 is a high-performance, high-speed Wi-Fi 7 outdoor tri-band wireless access point designed to provide fast, stable, and reliable connectivity in demanding outdoor environments. It supports wireless services across 2.4GHz, 5.1GHz, and 5.8GHz bands with a powerful 12-stream configuration, consisting of 4×4 on each frequency band.

Key Features

  • ArrowWiFi 7 standard, support 2.4GHz(1376Mbps), 5GHz(5764Mbps), 5GHz(5764Mbps) tri-band wireless rate
  • Arrow4×4 (2.4GHz) + 4×4 (5GHz) + 4×4 (5GHz), a total of 12 streams
  • ArrowCommercial-grade Qualcomm ARM quad-core solution, maximum number of user accesses 1536
  • Arrow1×10G optical port + 1×10G RJ45 port (802.3bt) + 1×2.5G RJ45 port
  • ArrowAll-metal aluminum shell, industrial-grade IP67 protection, -40℃~70℃ wide operating temperature
  • ArrowSupport PoE/DC flexible power supply, support pole/wall mounting
NX-AP13G-O7
Performance

Performance

  • Arrow 1024-QAM High-speed Access
  • Arrow 802.11ax OFDMA
  • Arrow BLE Module Integrated
  • Arrow 3 Gigabit Ethernet ports
Network Management

Network Management

  • Arrow Seamless Integration
  • Arrow NODEXON cloud
  • Arrow Free Mobile Application for Mobile Management
Service Quality

Service Quality

  • Arrow EN 62311 Health Standard
  • Arrow Device Recognition Technology
  • Arrow STA Control
  • Arrow Bandwidth Control
Energy Flow

Energy Flow

  • Arrow Operating temperature: -10°C to 50°C
  • Arrow ＜25.4W Power Consumption
  • Arrow DC 48V/1A Local Power Supply
IP

IP

  • Arrow IPv4/IPv6 Address Supported
  • Arrow Multicast to Unicast Routing Conversion
  • Arrow DHCP Snooping
Security Policies

Security Policies

  • Arrow Different Passwords for each user
  • Arrow Individual SSID
  • Arrow Anti-theft Lock Supported
  • Arrow GB4943, EN/IEC 60950-1 Safety Standard

Specifications

2.4GHz Frequency Band
2.4GHz ~ 2.484GHz (802.11 b/g/n/ax/be)
5GHz Frequency Band
5.150GHz ~ 5.850GHz (802.11 a/n/ac/ax/be
Antennas
8 × 2.4GHz/5GHz omnidirectional antennas, each with a gain of 6dBi
Wireless Speed
2.4GHz provides a maximum access rate of 1376Mbps, 5GHz1 provides a maximum access rate of 5764Mbps, and 5GHz2 provides a maximum access rate of 5764Mbps, with a total rate of nearly 13Gpbs.
Device Capacity
1536
2.4GHz Tx Power
<24±2dBm
5GHz Tx Power
<23±2dBm
Interface
1 × 10G SFP optical port
1 × 10G WAN port, support PoE 48V input
1 × 10/100/1000/2500Mbps LAN port
Buttons
Reset button (Press and hold for 6-10 seconds to restore to factory default settings)
Power Supply
PoE 802.3bt, DC2.054V/1A
Status Indicator
WAN port light: Silkscreen WAN: single green light on the front; always on for UP, off for Down, flashes when there is data
LAN port light: Silkscreen LAN: single green light on the front; always on for UP, off for Down, flashes when there is data
WiFi light: Silkscreen WiFi: Green/blue dual color on the front; 2.4GHz is always green when turned on, off when turned off, and flashes when there is data; 5GHz, 6GHz is always blue when turned on, off when turned off, and flashes when there is data
SFP interface light: Silkscreen SFP: single green light on the front; always on for UP, off for Down, flashing when there is data
Power/SYS: Silk-screen SYS: Red/green dual colors on the front; the red light is always on immediately after power is turned on, and the red light goes out and the green light is always on after the system starts.
Power Consumption
<42W
Dimensions
318.4mm × 269.4mm × 90.2mm
Work Environment
Operating temperature: -10°C to 70°C
Storage temperature: -40°C to 70°C
Humidity: 5% to 95% (no condensation)
Protection Level
IP67

Datasheet

    Datasheet (PDF)
