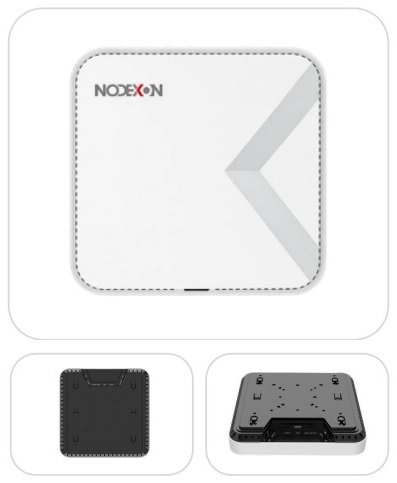

NX-AP5000M-C7

The NODEXON NX-AP5000M-C7 is a high-performance Wi-Fi 7 (802.11be) dual-band indoor ceiling-mounted access point designed to deliver fast, stable, and reliable wireless connectivity. It features a 2×2 configuration on the 2.4GHz band and 3×3 configuration on the 5GHz band, providing enhanced wireless performance for demanding indoor environments.

Key Features

  • ArrowWiFi 7 standard, 5011Mbps dual-band wireless rate
  • Arrow2×2 (2.4GHz) + 3×3 (5GHz: 3SS) total 5 streams
  • ArrowSupport seamless roaming, high-density deployment, 160MHz bandwidth, 256 devices
  • ArrowSupport 4096-QAM+MLO+MRU+Preamble Puncture technology
  • Arrow1×2.5G network port + 1×Gigabit network port
  • ArrowSupport PoE (802.3at) power supply and DC power supply, fat and thin in one
  • ArrowSupport ceiling or wall mounting, simple and easy to operate
NX-AP5000M-C7
Performance

Performance

  • Arrow 1024-QAM High-speed Access
  • Arrow 802.11ax OFDMA
  • Arrow BLE Module Integrated
  • Arrow 3 Gigabit Ethernet ports
Network Management

Network Management

  • Arrow Seamless Integration
  • Arrow NODEXON cloud
  • Arrow Free Mobile Application for Mobile Management
Service Quality

Service Quality

  • Arrow EN 62311 Health Standard
  • Arrow Device Recognition Technology
  • Arrow STA Control
  • Arrow Bandwidth Control
Energy Flow

Energy Flow

  • Arrow Operating temperature: -10°C to 50°C
  • Arrow ＜25.4W Power Consumption
  • Arrow DC 48V/1A Local Power Supply
IP

IP

  • Arrow IPv4/IPv6 Address Supported
  • Arrow Multicast to Unicast Routing Conversion
  • Arrow DHCP Snooping
Security Policies

Security Policies

  • Arrow Different Passwords for each user
  • Arrow Individual SSID
  • Arrow Anti-theft Lock Supported
  • Arrow GB4943, EN/IEC 60950-1 Safety Standard

Specifications

Work Frequency
2.4GHz: 2.4GHz ~ 2.484GHz
5GHz: 5.150GHz~5.850GHz
WiFi Standard
2.4GHz: 802.11 b /g /n / ax
5GHz: 802.11 a / n / ac / ax
Wireless Speed
2.4GHz provides a maximum access rate of 688Mbps, and 5GHz provides a maximum access rate of 4323Mbps
Device Capacity
256
Tx Power
2.4GHz: <24±2dBm
54GHz: <23±2dBm
Interface
1×10/100/1000/2500Mbps WAN Port, Support 802.3at input
1×10/100/1000Mbps LAN Port
Antenna
Built-in omnidirectional antennas
Reset Button
Reset button (Press and hold 6-10 seconds to restore factory defaults)
Status Indicator
Front-panel tri-color LED (red/green/blue)
Power Supply
DC2.0 12V / 2A, PoE 802.3at
Power Consumption
<20W
Dimensions
186mm×186mm×36.6mm
Net Weight
0.55kg
Work Environment
Working:-10°C to 45°C
Storage: -40°C to 70°C
Humidity：5％～95％（Non-Condensing

Datasheet

    Datasheet (PDF)
