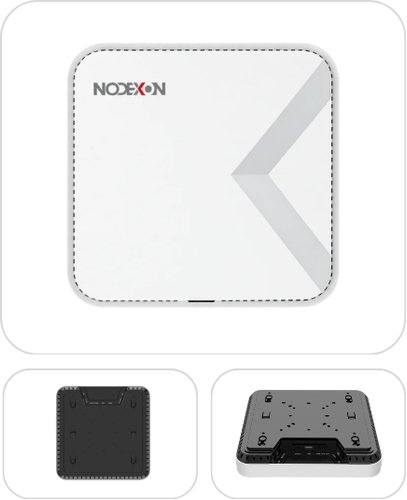

NX-AP13G-C7

NODEXON NX-AP13G-C7 is a high-performance, high-speed Wi-Fi 7 (802.11be) indoor tri-band ceiling-mounted access point designed to deliver fast, stable, and reliable wireless connectivity in high-density environments. It provides wireless services across 2.4GHz, 5.1GHz, and 5.8GHz bands with a powerful 12-stream radio configuration, consisting of 4×4 on each frequency band.

Key Features

  • ArrowWiFi 7 standard, 12904Mbps tri-band wireless rate
  • ArrowQualcomm solution, high-density deployment, 160MHz bandwidth, 1536 devices
  • Arrow4×4 (2.4GHz) + 4×4 (5.1GHz) + 4×4 (5.8GHz), a total of 12 streams
  • ArrowSupport 4096-QAM+MLO+MRU+Preamble Puncture technology
  • ArrowSupport PoE (802.3bt) power supply and DC power supply, fat and thin in one
  • ArrowSupport ceiling or wall mounting, simple and easy to operate
  • ArrowSupport cloud platform/APP operation and maintenance, easy to maintain
NX-AP13G-C7
Performance

Performance

  • Arrow 1024-QAM High-speed Access
  • Arrow 802.11ax OFDMA
  • Arrow BLE Module Integrated
  • Arrow 3 Gigabit Ethernet ports
Network Management

Network Management

  • Arrow Seamless Integration
  • Arrow NODEXON cloud
  • Arrow Free Mobile Application for Mobile Management
Service Quality

Service Quality

  • Arrow EN 62311 Health Standard
  • Arrow Device Recognition Technology
  • Arrow STA Control
  • Arrow Bandwidth Control
Energy Flow

Energy Flow

  • Arrow Operating temperature: -10°C to 50°C
  • Arrow ＜25.4W Power Consumption
  • Arrow DC 48V/1A Local Power Supply
IP

IP

  • Arrow IPv4/IPv6 Address Supported
  • Arrow Multicast to Unicast Routing Conversion
  • Arrow DHCP Snooping
Security Policies

Security Policies

  • Arrow Different Passwords for each user
  • Arrow Individual SSID
  • Arrow Anti-theft Lock Supported
  • Arrow GB4943, EN/IEC 60950-1 Safety Standard

Specifications

Work Frequency
2.4GHz：2.4GHz ~ 2.484GHz
5GHz：5.150GHz～5.850GHz
WiFi Standard
2.4GHz：802.11 b /g /n / ax / be
5GHz：802.11 a / n / ac / ax / be
Wireless Speed
2.4GHz：1376Mbps 5.1GHz：5764Mbps 5.8GHz：5764Mbps
Device Capacity
1536
Tx Power
2.4GHz: <24±2dBm
5GHz: <23±2dBm
6GHz: 23±2dBm
Interface
1× 10Gbps SFP+ fiber port
1× 10Gbps WAN port, supporting 802.3bt input
1× 10/100/1000/2500Mbps LAN Port
1× USB 2.0
Antenna
Built-in omnidirectional antennas
Reset Button
Reset button (Press and hold 6-10 seconds to restore factory defaults)
Status Indicator
Front-panel tri-color LED (red/green/blue)
Power Supply
PoE 802.3bt，DC2.0 54V/1A
Power Consumption
<40W
Dimensions
220mm×220mm×42mm
Net Weight
1.38kg
Work Environment
Working:-10°C to 55°C
Storage: -40°C to 70°C
Humidity：5％～95％（Non-Condensing

Datasheet

    Datasheet (PDF)
