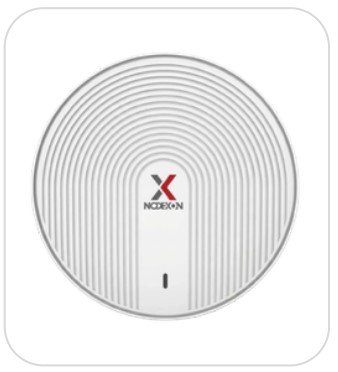

NX-AP3000-C6

The NODEXON NX-AP3000-C6 is a high-performance, high-speed Wi-Fi 6 (802.11ax) indoor dual-band ceilingmounted access point designed to deliver fast, stable, and reliable wireless connectivity. It provides dual-band wireless services across both 2.4GHz and 5GHz frequencies, ensuring efficient network performance for demanding indoor environments

Key Features

  • ArrowWiFi 6 standard, dual-band wireless signal
  • ArrowSupport seamless roaming, high-density deployment, and 128 devices
  • Arrow2×2 (2.4GHz) + 3×3 (5GHz: 2SS) 4 streams in total
  • ArrowProvides 2×Gigabit network ports, supporting mainstream high-bandwidth access
  • ArrowSupport standard PoE and DC power supply, fat and thin in one
  • ArrowSupport ceiling or wall mounting, simple and easy to operate
  • ArrowSupport cloud platform/APP operation and maintenance, easy to maintain

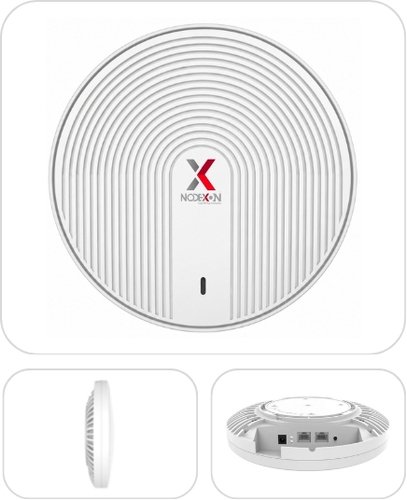

NX-AP3000-C6
Performance

Performance

  • Arrow 1024-QAM High-speed Access
  • Arrow 802.11ax OFDMA
  • Arrow BLE Module Integrated
  • Arrow 3 Gigabit Ethernet ports
Network Management

Network Management

  • Arrow Seamless Integration
  • Arrow NODEXON cloud
  • Arrow Free Mobile Application for Mobile Management
Service Quality

Service Quality

  • Arrow EN 62311 Health Standard
  • Arrow Device Recognition Technology
  • Arrow STA Control
  • Arrow Bandwidth Control
Energy Flow

Energy Flow

  • Arrow Operating temperature: -10°C to 50°C
  • Arrow ＜25.4W Power Consumption
  • Arrow DC 48V/1A Local Power Supply
IP

IP

  • Arrow IPv4/IPv6 Address Supported
  • Arrow Multicast to Unicast Routing Conversion
  • Arrow DHCP Snooping
Security Policies

Security Policies

  • Arrow Different Passwords for each user
  • Arrow Individual SSID
  • Arrow Anti-theft Lock Supported
  • Arrow GB4943, EN/IEC 60950-1 Safety Standard

Specifications

Work Frequency
2.4GHz: 2.4GHz ~ 2.484GHz
5GHz: 5.150GHz ~ 5.850GHz
WiFi Standard
2.4GHz：802.11 b /g /n / ax
5GHz：802.11 a / n / ac / ax
Wireless Speed
2.4GHz provides a maximum access rate of 574Mbps, and 5GHz provides a maximum access rate of 2402Mbps
Device Capacity
128
Tx Power
2.4GHz: <23±2dBm
5GHz: <23±2dBm
Interface
1×10/100/1000/2500Mbps WAN Port, Support 48V PoE input
1×10/100/1000Mbps LAN Port
Antenna
Built-in omnidirectional antennas
Button
Reset button (Press and hold 6-10 seconds to restore factory defaults)
Status Indicator
WAN, LAN, Tri-color light (SYS-red, 2.4G-green, 5.8G-blue)
Power Supply
DC2.0 12V /1.5A PoE 802.3at
Power Consumption
<15W
Dimensions
186mm×186mm×37mm
Net Weight
0.55kg
Work Environment
Operating temperature: -20°C to 45°C
Storage temperature: -40°C to 70°C
Humidity: 5% to 95% (no condensation)

Datasheet

    Datasheet (PDF)
