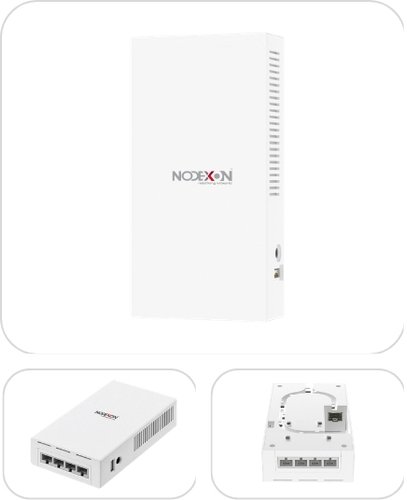

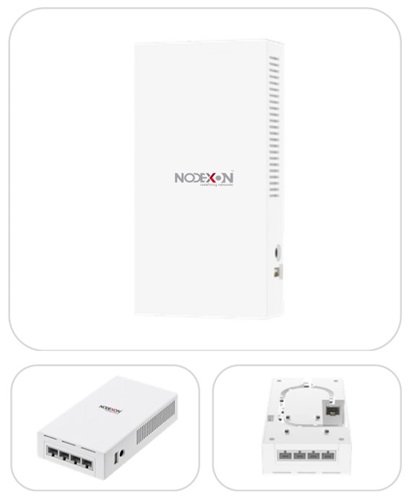

NX-AP3600SFP-4PW7

The NODEXON NX-AP3600SFP-4PW7 is a WiFi 7 in-wall access point built on a Qualcomm ARM quad-core platform, designed for high-density deployments where seamless roaming matters — think hotel rooms, apartments, and office spaces needing wall-mounted coverage.

Key Features

  • ArrowWiFi 7 standard, 2.4GHz provides a maximum access rate of 688Mbps, and 5GHz provides a maximum access rate of 2882Mbps
  • ArrowMIMO 2×2 (2.4GHz) + 2×2 (5GHz)
  • ArrowProvides 1×2.5G SFP port + 4×Gigabit LAN ports + 1×USB + 1×Console
  • ArrowQualcomm ARM Quad-Core Solution, Supporting Intelligent Seamless Roaming and High-Density Deployment
  • ArrowSpatial multiplexing
  • ArrowSupport 12V DC(2.0) and 48V DC(2Pin) dual power supply
  • ArrowSupport cloud platform/APP operation and maintenance, easy to maintain
NX-AP3600SFP-4PW7
Performance

Performance

  • Arrow 1024-QAM High-speed Access
  • Arrow 802.11ax OFDMA
  • Arrow BLE Module Integrated
  • Arrow 3 Gigabit Ethernet ports
Network Management

Network Management

  • Arrow Seamless Integration
  • Arrow NODEXON cloud
  • Arrow Free Mobile Application for Mobile Management
Service Quality

Service Quality

  • Arrow EN 62311 Health Standard
  • Arrow Device Recognition Technology
  • Arrow STA Control
  • Arrow Bandwidth Control
Energy Flow

Energy Flow

  • Arrow Operating temperature: -10°C to 50°C
  • Arrow ＜25.4W Power Consumption
  • Arrow DC 48V/1A Local Power Supply
IP

IP

  • Arrow IPv4/IPv6 Address Supported
  • Arrow Multicast to Unicast Routing Conversion
  • Arrow DHCP Snooping
Security Policies

Security Policies

  • Arrow Different Passwords for each user
  • Arrow Individual SSID
  • Arrow Anti-theft Lock Supported
  • Arrow GB4943, EN/IEC 60950-1 Safety Standard

Specifications

WIFI Protocol
802.11b /g / n / a / ac / ax / be
Maximum Speed
2.4GHz: 688Mbps，5GHz: 2882Mbps
Frequency Band
2.4GHz ~ 2.484GHz、5.150GHz～5.850GHz
Antenna
Built-in 2.4GHz/5GHz dual band antenna 2PCS，antenna gain：3dBi
Device Capacity
128
Tx Power
2.4GHz: < 24±2dBm
5GHz: < 23±2dBm
Interface (WAN)
1×2.5G SFP port
Interface（LAN)
4×10/100/1000Mbps LAN Port
Interface（USB)
1×USB 2.0
Console Port
1×Type-C Console Port
External Button
Reset Button（hold 6-10 seconds to restore factory defaults
LED
SYS，SFP port，LAN×4
Power supply
(1) DC 48V/0.5A(2Pin)
(2) DC 12V/2A（DC2.0）
Power Consumption
< 24W
Dimensions
168mm×86mm×37mm
Net Weight
0.313kg
Work Environment
Working:-10°C to 40°C
Storage: -40°C to 70°C
Humidity：5％～95％（Non-Condensing
ESD Test
Air Discharge: ±8kV, Contact Discharge: ±6kV
Surge
Common Mode 2kV, Differential Mode 1kV

Datasheet

    Datasheet (PDF)
