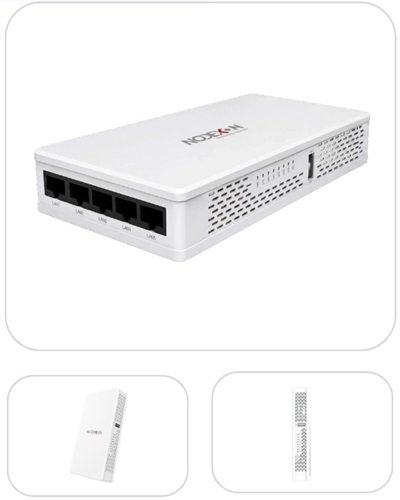

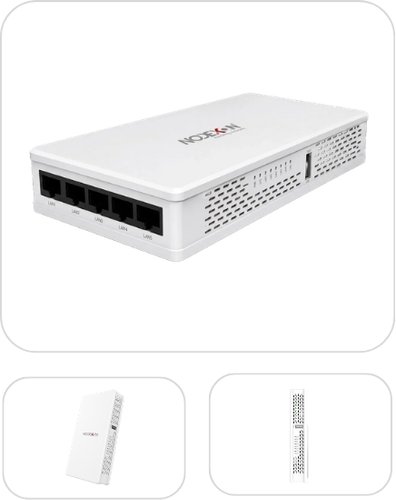

NX-AP3000-4PEW6

The NODEXON NX-AP3000-4PEW6 is a high-performance, high-speed indoor 11ax panel AP, offering dual-band wireless services on 2.4GHz and 5.8GHz frequencies, providing a cleaner wireless environment and more stable wireless access.

It provides stable wireless coverage for enterprise, commercial, and high-density networking environments. The access point is built to support consistent connectivity and smooth data transmission across connected devices.

Key Features

  • ArrowWiFi 6 standard, dual-band 3000Mbps wireless rate
  • Arrow2×2 (2.4GHz) + 2×2 (5GHz), a total of 4 streams
  • ArrowProvides 1×Gigabit WAN port + 4×Gigabit LAN ports + 1×USB port
  • Arrow1 pair of network pass-through ports, support 1 to 1 network port transparent transmission, LAN1 port supports PoE output
  • ArrowSupport 48V standard PoE power supply, fat and thin in one
  • ArrowSupport cloud platform/APP operation and maintenance, easy to maintain
  • ArrowAdvanced Heat Dissipation: Heat sink treated with a special surface coating for ideal heat dissipation and stability.
NX-AP3000-4PEW6
Performance

Performance

  • Arrow 1024-QAM High-speed Access
  • Arrow 802.11ax OFDMA
  • Arrow BLE Module Integrated
  • Arrow 3 Gigabit Ethernet ports
Network Management

Network Management

  • Arrow Seamless Integration
  • Arrow NODEXON cloud
  • Arrow Free Mobile Application for Mobile Management
Service Quality

Service Quality

  • Arrow EN 62311 Health Standard
  • Arrow Device Recognition Technology
  • Arrow STA Control
  • Arrow Bandwidth Control
Energy Flow

Energy Flow

  • Arrow Operating temperature: -10°C to 50°C
  • Arrow ＜25.4W Power Consumption
  • Arrow DC 48V/1A Local Power Supply
IP

IP

  • Arrow IPv4/IPv6 Address Supported
  • Arrow Multicast to Unicast Routing Conversion
  • Arrow DHCP Snooping
Security Policies

Security Policies

  • Arrow Different Passwords for each user
  • Arrow Individual SSID
  • Arrow Anti-theft Lock Supported
  • Arrow GB4943, EN/IEC 60950-1 Safety Standard

Specifications

WIFI Protocol
802.11b /g / n / a / ac / ax
Maximum Speed
2.4GHz : 574Mbps，5GHz :2402Mbps
Frequency Band
2.4GHz ~ 2.484GHz、5.150GHz～5.850GHz
2.4GHz Antenna
On-board soldered antenna 2PCS, Antenna Gain：3dBi
5.8G Antenna
On-board soldered antenna 2PCS, Antenna Gain：5dBi
Device Capacity
128
Tx Power
2.4GHz: <20±2dBm
5GHz: <20±2dBm
Interface (WAN)
1/10/100/1000Mbps Self-adaptive WAN Port,Support 48V PoE input
Interface（LAN)
4/10/100/1000Mbps Self-adaptive LAN Port(LAN1 supports outward PoE output compliant with IEEE 802.3af standard)
Interface（USB)
1×USB 2.0
RJ45 Passthrough Port
1-to-1 Ethernet transparent transmission
Console Port
Supports
External Button
Reset Button（hold 6-10 seconds to restore factory defaults
LED
SYS，2.4G WIFI，5.8G WIFI，WAN，LAN×4
Power Supply
PoE 802.3at, DC48V
Power Consumption
<24W
Dimensions
160mm×86mm×29mm
Net Weight
0.26kg
Work Environment
Working:-10°C to 40°C
Storage: -40°C to 70°C
Humidity：5％～95％（Non-Condensing

Datasheet

    Datasheet (PDF)
