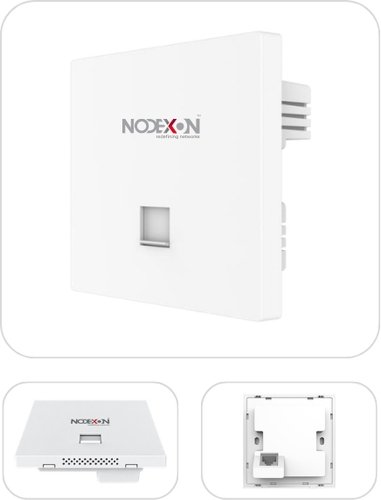

NX-AP1200-W6

NODEXON NX-AP1200-W6 is a high-performance, high-speed indoor 11ac panel AP, offering dual-band wireless services on 2.4GHz and 5GHz frequencies, providing a cleaner wireless environment and more stable wireless access.

Its ODM capabilities enable customized products tailored to specific customer and project requirements. These wireless solutions are suitable for enterprise, commercial, industrial, and smart networking applications.

Key Features

  • ArrowWiFi 6 standard, dual-band wireless signal
  • Arrow8.5mm thin design, more beautiful when installed in the wall
  • ArrowSupport seamless roaming, high-density deployment, and 128 devices
  • Arrow2×2 (2.4GHz) + 2×2 (5GHz), a total of 4 streams
  • ArrowProvides 1×Gigabit WAN port + 1×Gigabit LAN port
  • ArrowSupport 48V standard PoE power supply
  • ArrowFat and thin in one, power adjustable

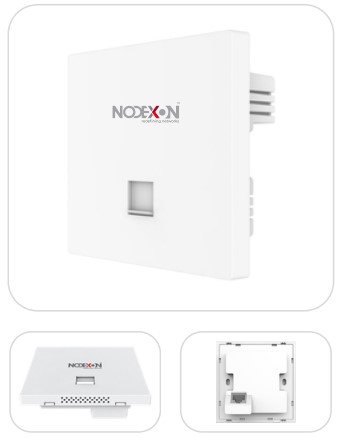

NX-AP1200-W6
Performance

Performance

  • Arrow 1024-QAM High-speed Access
  • Arrow 802.11ax OFDMA
  • Arrow BLE Module Integrated
  • Arrow 3 Gigabit Ethernet ports
Network Management

Network Management

  • Arrow Seamless Integration
  • Arrow NODEXON cloud
  • Arrow Free Mobile Application for Mobile Management
Service Quality

Service Quality

  • Arrow EN 62311 Health Standard
  • Arrow Device Recognition Technology
  • Arrow STA Control
  • Arrow Bandwidth Control
Energy Flow

Energy Flow

  • Arrow Operating temperature: -10°C to 50°C
  • Arrow ＜25.4W Power Consumption
  • Arrow DC 48V/1A Local Power Supply
IP

IP

  • Arrow IPv4/IPv6 Address Supported
  • Arrow Multicast to Unicast Routing Conversion
  • Arrow DHCP Snooping
Security Policies

Security Policies

  • Arrow Different Passwords for each user
  • Arrow Individual SSID
  • Arrow Anti-theft Lock Supported
  • Arrow GB4943, EN/IEC 60950-1 Safety Standard

Specifications

2.4GHz WIFI Protocol
802.11 b / g / n
5GHz WIFI Protocol
802.11 a / n / ac
2.4GHz Frequency Band
2.4GHz ~ 2.484GHz
5GHz Frequency Band
5.150GHz～5.850GHz
Maximum Rate
2.4GHz: 300Mbps; 5GHz: 867Mbps
2.4GHz Antenna
Built-in antennas 2PCS, Antenna gain: 2dBi
5GHz Antenna
Built-in antennas 2PCS, Antenna gain: 2dBi
Device Capacity
128
2.4GHz Tx Power
<18±2dBm
5GHz Tx Power
5GHz Tx Power
Interface (WAN)
1/10/100Mbps Self-adaptive WAN Port, Support 48V PoE input
Interface（LAN
1/10/10000Mbps Self-adaptive LAN Port
PoE
48V 802.3af
External Button
Reset Button（hold 6-10 seconds to restore factory defaults
Power Consumption
< 12W
Dimensions
86mm×86mm×29.5mm (Low-profile exterior 8.5mm)
Net Weight
0.15kg
Work Environment
Working:-10°C to 45°C
Storage: -40°C to 70°C
Humidity：5％～95％（Non-Condensing

Datasheet

    Datasheet (PDF)
