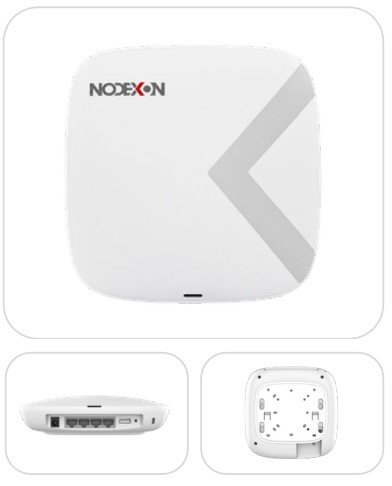

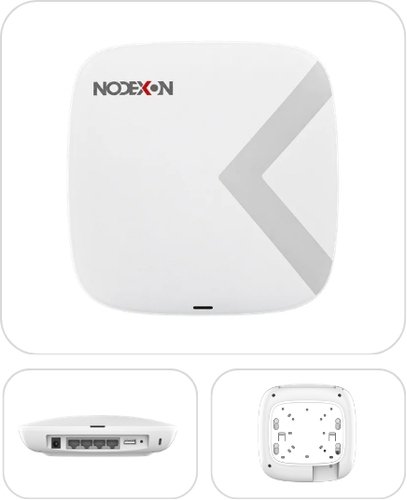

NX-AP3600PF-C7

The NODEXON NX-AP3600PF-C7 is a high-performance, high-speed Wi-Fi 7 (802.11be) indoor dual-band ceiling-mounted access point designed to deliver fast and reliable wireless connectivity. It provides wireless services on 2.4GHz with speeds up to 688Mbps and 5.8GHz with speeds up to 2882Mbps, ensuring efficient data transmission for demanding indoor environments.

Key Features

  • ArrowWiFi 7 standard, 5011Mbps dual-band wireless rate
  • Arrow2×2 (2.4GHz) + 2×2 (5GHz) total 4 streams
  • Arrow1×2.5G (SC) optical port + 4×Gigabit network ports (LAN1 supports PoE external power supply)
  • ArrowSupports three power supply modes: Hybrid Optical Fiber Cable PoF 48VC，DC2.0 12V/2A，DC (2-pin terminal) 48V
  • ArrowSupport seamless roaming, high-density deployment, and 128 devices
  • ArrowSupport cloud platform/APP operation and maintenance, easy to maintain
  • ArrowSupport ceiling or wall mounting, simple and easy to operate
NX-AP3600PF-C7
Performance

Performance

  • Arrow 1024-QAM High-speed Access
  • Arrow 802.11ax OFDMA
  • Arrow BLE Module Integrated
  • Arrow 3 Gigabit Ethernet ports
Network Management

Network Management

  • Arrow Seamless Integration
  • Arrow NODEXON cloud
  • Arrow Free Mobile Application for Mobile Management
Service Quality

Service Quality

  • Arrow EN 62311 Health Standard
  • Arrow Device Recognition Technology
  • Arrow STA Control
  • Arrow Bandwidth Control
Energy Flow

Energy Flow

  • Arrow Operating temperature: -10°C to 50°C
  • Arrow ＜25.4W Power Consumption
  • Arrow DC 48V/1A Local Power Supply
IP

IP

  • Arrow IPv4/IPv6 Address Supported
  • Arrow Multicast to Unicast Routing Conversion
  • Arrow DHCP Snooping
Security Policies

Security Policies

  • Arrow Different Passwords for each user
  • Arrow Individual SSID
  • Arrow Anti-theft Lock Supported
  • Arrow GB4943, EN/IEC 60950-1 Safety Standard

Specifications

WIFI Protocol
802.11 b/ g/n/a/ac/ax/be
Maximum Speed
2.4GHz Max. access rate:688Mbps，5GHz Max. access rate:2882Mbps
Frequency Band
2.4GHz ~ 2.484GHz, 5.150GHz～5.850GHz
2.4GHz Antenna
Built-in 2 × 2.4G antennas，gain: 4dBi
5GHz Antenna
Built-in 2 × 5G antennas，gain: 4dBi
Device Capacity
128
2.4GHz Tx Power
<26±2dBm
5GHz Tx Power
<23±2dBm
Interface (WAN)
1 × GPON Fiber port (SC), Supports remote 48V power supply via PoF hybrid fiber optic cable
Interface (LAN)
4/10/100/1000Mbps Adaptive Ethernet interface, With LAN1 supporting IEEE 802.3af standard PoE power output.
USB Interface
1 × USB2.0
LED
Red-Green-Blue Three-Color Indicator Light:
Power On: Lights red when powered on. The red light turns off and the green light turns steady on immediately after the system boots up and any WiFi is enabled. Thin AP Mode (Disconnected from AC): Both the red and green lights turn off. The blue light remains steady on.
AP Locator Function Active: Both the red and green lights turn off. The blue light blinks
Power Supply
1. Hybrid Optical Fiber Cable PoF 48V
2. DC2.0 12V/2A
3. DC (2-pin terminal) 48V
Power Consumption
<15W
Dimensions
190mm × 190mm × 50mm
Net Weight
0.55kg
Work Environment
Working:-10°C to 55°C
Storage: -40°C to 70°C
Humidity：5％～95％（Non-Condensing

Datasheet

    Datasheet (PDF)
