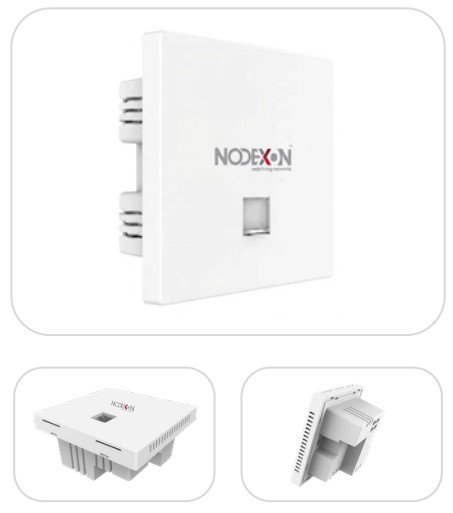

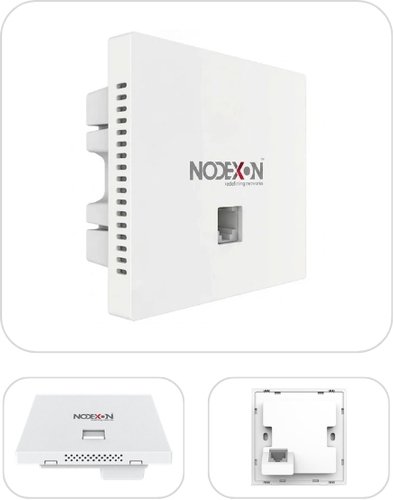

NX-AP3000-W6

NODEXON NX-AP3000-W6 is a high-performance, high-speed indoor 11ax panel AP, offering dual-band wireless services on 2.4GHz and 5GHz frequencies, providing a cleaner wireless environment and more stable wireless access.

It delivers stable wireless coverage for demanding commercial and enterprise networking environments. The device is designed for efficient deployment and dependable connectivity across various applications. Its robust design makes it suitable for environments requiring consistent and secure wireless communication.

Key Features

  • ArrowWiFi 6 standard, dual-band wireless signal
  • Arrow2×2 (2.4GHz) + 2×2 (5GHz), a total of 4 streams
  • ArrowSupport seamless roaming, high-density deployment, and 128 devices
  • ArrowProvides 1 Gigabit WAN port + 1 Gigabit LAN port
  • ArrowSupport 48V standard PoE power supply
  • ArrowSupport cloud platform/APP operation and maintenance, easy to maintain
NX-AP3000-W6
Performance

Performance

  • Arrow 1024-QAM High-speed Access
  • Arrow 802.11ax OFDMA
  • Arrow BLE Module Integrated
  • Arrow 3 Gigabit Ethernet ports
Network Management

Network Management

  • Arrow Seamless Integration
  • Arrow NODEXON cloud
  • Arrow Free Mobile Application for Mobile Management
Service Quality

Service Quality

  • Arrow EN 62311 Health Standard
  • Arrow Device Recognition Technology
  • Arrow STA Control
  • Arrow Bandwidth Control
Energy Flow

Energy Flow

  • Arrow Operating temperature: -10°C to 50°C
  • Arrow ＜25.4W Power Consumption
  • Arrow DC 48V/1A Local Power Supply
IP

IP

  • Arrow IPv4/IPv6 Address Supported
  • Arrow Multicast to Unicast Routing Conversion
  • Arrow DHCP Snooping
Security Policies

Security Policies

  • Arrow Different Passwords for each user
  • Arrow Individual SSID
  • Arrow Anti-theft Lock Supported
  • Arrow GB4943, EN/IEC 60950-1 Safety Standard

Specifications

2.4GHz WIFI Protocol
802.11 b / g / n / ax
5GHz WIFI Protocol
802.11 a / n / ac / ax
2.4GHz Frequency Band
2.4GHz ~ 2.484GHz
5GHz Frequency Band
5.150GHz～5.850GHz
Antenna
Built-in dual band antennas, antenna gain：1.7dBi
Maximum Rate
2.4GHz: 574Mbps; 5GHz: 2402Mbps
Device Capacity
128
2.4GHz Tx Power
<20±2dBm
5GHz Tx Power
18.5±2dBm
Interface (WAN)
1/10/100/1000Mbps WAN Port, Support 48V PoE input
Interface（LAN
1×10/100/1000Mbps LAN Port
External Button
Reset Button（hold 6-10 seconds to restore factory defaults
LED
SYS
Power Supply
PoE 802.3af
Power Consumption
< 12W
Dimensions
86mm×86mm×42.8mm (Low-profile exterior 10.8mm)
Net Weight
0.22kg
Work Environment
Working:-10°C to 40°C
Storage: -40°C to 70°C
Humidity：5％～95％（Non-Condensing

Datasheet

    Datasheet (PDF)
