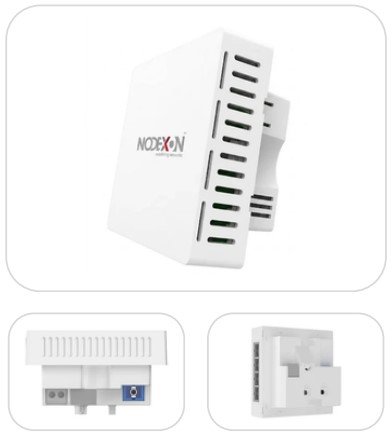

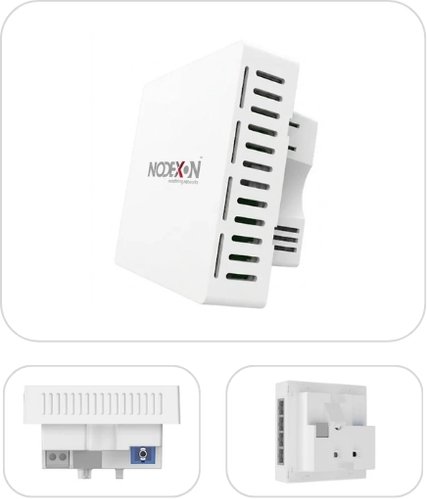

NX-AP3000-4PW6

The NODEXON NX-AP3000-4PW6 A high-performance indoor 11ax panel AP, delivering dual-band 2.4GHz/5.8GHz Wi-Fi for cleaner, more stable connections. Supports PoF power and OLT access, with a 1GE SC uplink for fiber beyond 100m.

The company specializes in Wi-Fi, wireless networking, and connectivity technologies for various applications. Its solutions are designed to provide stable, high-speed, and secure wireless communication. NODEXON offers flexible ODM services tailored to meet specific product and business requirements

Key Features

  • ArrowWiFi 6 standard, dual-band wireless signal
  • Arrow2×2 (2.4GHz) + 2×2 (5GHz), a total of 4 streams
  • ArrowSupports optical-electric hybrid cable PoF power supply and GPON optical port (SC) power supply
  • Arrow1×Gigabit (SC) optical port + 4×Gigabit network ports
  • ArrowSupport seamless roaming, high-density deployment, and 128 devices
  • ArrowSupport cloud platform/APP operation and maintenance, easy to maintain
NX-AP3000-4PW6
Performance

Performance

  • Arrow 1024-QAM High-speed Access
  • Arrow 802.11ax OFDMA
  • Arrow BLE Module Integrated
  • Arrow 3 Gigabit Ethernet ports
Network Management

Network Management

  • Arrow Seamless Integration
  • Arrow NODEXON cloud
  • Arrow Free Mobile Application for Mobile Management
Service Quality

Service Quality

  • Arrow EN 62311 Health Standard
  • Arrow Device Recognition Technology
  • Arrow STA Control
  • Arrow Bandwidth Control
Energy Flow

Energy Flow

  • Arrow Operating temperature: -10°C to 50°C
  • Arrow ＜25.4W Power Consumption
  • Arrow DC 48V/1A Local Power Supply
IP

IP

  • Arrow IPv4/IPv6 Address Supported
  • Arrow Multicast to Unicast Routing Conversion
  • Arrow DHCP Snooping
Security Policies

Security Policies

  • Arrow Different Passwords for each user
  • Arrow Individual SSID
  • Arrow Anti-theft Lock Supported
  • Arrow GB4943, EN/IEC 60950-1 Safety Standard

Specifications

WIFI Transmission Protocol
802.11b/g/n/a/ac/ax
Peak data rate
2.4GHz Max. access rate: 574Mbps，5GHz Max. access
Operating Frequency Band
rate: 2402Mbps 2.4GHz ~ 2.484GHz, 5.150GHz5.850GHz
Built-in antenna 2 .4G/5G
Built-in 2PCS onboard dual-band ceramic antennas，Antennas gain：2.4G：4.5dBi, 5G: 4.9dBi
Maximum Wireless Connections Supported
128
2.4GHz RF power output
19dBm
5GHz RF power output
18dBm
Interface (WAN)
1 × 1Gbps SC Fiber port, Support 48V PoE input
Interface（LAN)
4/10/100/1000Mbps Self-adaptive LAN Port
External Button
Reset Button（hold 6-10 seconds to restore factory defaults)
Power Supply
PoF 48V
Power Consumption
< 14W
Dimensions
86mm×86mm×51.05mm
Net Weight
0.22kg
Work Environment
Working:-10°C to 45°C
Storage: -40°C to 70°C
Humidity：5％～95％（Non-Condensing

Datasheet

    Datasheet (PDF)
