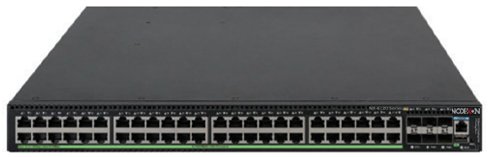

NX-6120S-54S - NX-6120 Series High Performance Intelligent Ethernet Switch

NX-6120S-54S - NX-6120 Series
High Performance Intelligent Ethernet Switch

NX-6120 series is a new generation of high-performance, high-port density, high-security and easy-to-install intelligent managed Gigabit Ethernet switches developed by Nodexon using industry-leading ASIC technology, supporting IPv4/IPv6 dual-stack management and forwarding, supports static routing protocols and routing protocols such as RIP, OSPF, IS-IS, BGP, etc., and supports rich management and security features.
NX-6120 products are mainly positioned at the access layer and aggregation layer of enterprises and campuses, meeting high-density Gigabit access, fixed 10 Gigabit uplink ports, supporting PoE+, and building high-performance end-to-end IP network solutions with other NODEXON products.
NX-6120 series Ethernet switch includes the following models
NX-6120S-28S: 24x10/100/1000BASE-T Ethernet ports, 4x1G/10G BASE-X SFP+ ports
NX-6120S-54S: 48x10/100/1000BASE-T Ethernet ports, 6x1G/10G BASE-X SFP+ ports.
NX-6120S-28S-HPE: 24x10/100/1000BASE-T Ethernet ports (PoE+), 4x1G/10G BASE-X SFP+ ports.
NX-6120S-54S-PE: 48x10/100/1000BASE-T Ethernet ports (PoE+), 6x1G/10G BASE-X SFP+ ports.

Key Features

SmartNMC (Smart Network Management Center)
Visualization Ability
High-performance IPv4/IPv6 Service Capabilities
Comprehensive Security Control Policies
Intelligent Resilient Framework 2 (IRF2)
Multiple Reliability Protection
Abundant QoS Features
Outstanding Management Capacity
Application-Driven Campus
Cloud Empowerment, Simplified Network
Green Technology
Fast PoE, Perpetual PoE

Similar Models

NX-6120S-28S

24x10/100/1000BASE-T Ethernet ports

NX-6120S-28S-HPE

24x10/100/1000BASE-T Ethernet ports (PoE+)

NX-6120S-54S-PE

48x10/100/1000BASE-T Ethernet ports (PoE+)

Performance

High-performance IPv4/IPv6 service capabilities.
Building high-performance end-to-end IP network solutions with other NODEXON products.

Network Management

Software-Defined Networking
As an access device on enterprise networks, the switch can provide GE connections for desktop applications

Security Policy

The switch supports hardware-level encryption technology MACsec (802.1AE), which is an industry-standard security technology that provides secure communication for all traffic on Ethernet links.

Layer Switching

NX-6120 products are mainly positioned at the access layer and aggrega�on layer of enterprises and campuses, meeting high-density Gigabit access.

Data Center Virtualization

VXLAN enables long-distance virtual machine and data mobility and is typically used in data centers and the access layer of campus networks for multitenant services
SmartNMC is embedded network management tool into the switch, it includes commander switches and other access switches.

High Scalability and High Port Density

Supporting IPv4/IPv6 dual-stack management and forwarding, supports static routing protocols and rou�ng protocols such as RIP, OSPF, IS-IS, BGP, etc., and supports rich management and security features.

Port switching capacity

216Gbps

Packet forwarding rate

161 Mpps

Box switching capacity

598Gbps

Dimensions (H × W × D)

440 × 460 × 43.6 mm (17.32 x 18.11 x 1.71 in)

Weight

≤ 8.8 kg

Flash/SDRAM

512M/1GB

Packet buffer

Console ports

1 Console Port (RJ45)

Management Ethernet ports

Service ports

48*10 /100/1000Base-T adaptive Ethernet ports, 6*10G SFP+ ports

Expansion slots

Fan

MTBF(Year)

79.5

MTTR(Hour)

Operating temperature

-5°C ~ 45°C

Storage temperature

40°C to 70°C (-40°F to 158°F)

Operating & storage humidity

5% RH to 95% RH

Multicast

IGMP Snooping V2/V3

Security

Hierarchical user management and password protection
AAA authentication support
RADIUS authentication
